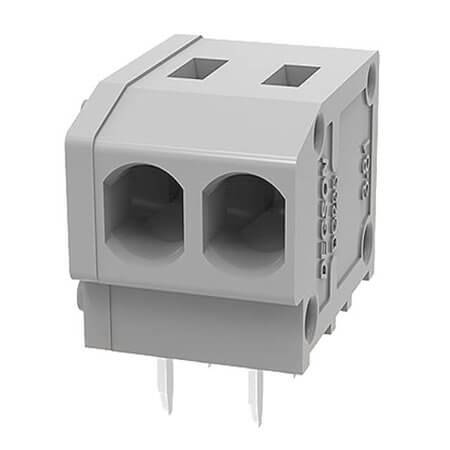

DG235W-3.81-02P-11-00AH TERM.BLK.3.81MM 2P PCB SPRING TYPE GRAY

DG235W-3.81-02P-11-00AH TERM.BLK.3.81MM 2P PCB SPRING TYPE GRAY Description

DG235W-3.81-02P-11-00AH TERM.BLK.3.81MM 2P PCB SPRING TYPE GRAY DG235W-3.81-02P-11-00AH is a reliable and efficient PCB terminal that supports an operating temperature range of -40°C~+105°C. Designed for wire gauges 20-18 AWG (1.5 mm²). Constructed using PA66+UL94V-0 housing, Stainless Steel clamps, and Copper Alloy+Sn Plated pins for durability. Manufactured by DEGSON with compliance to ROHS standards. Packaged in BULK packaging for secure handling.

DG235W-3.81-02P-11-00AH TERM.BLK.3.81MM 2P PCB SPRING TYPE GRAY Technical Specifications

• Manufacturer: DEGSON
• Series: DG235W
• Gender: None
• WireTermination: Screw
• NumberofPins: 2 Pins
• NumberOfLevel: 1
• PositionsOfLevel: 2
• Pitch: 3.81mm
• MountingType: THT R/A
• WireEntry: 180°
• ProfileHeight: 9.15mm
• Current: 10.0A
• Voltage: 250V
• OperatingTemperature: -40°C~+105°C
• WireGauge(AWG): 20-18 AWG
• WireGauge(mm²): 1.5 mm²
• HousingMaterial: PA66+UL94V-0
• ClampMaterial: Stainless Steel
• PinMaterial: Copper Alloy+Sn Plated
• Color: Gray
• Side: None
• Rohs: ROHS
• BULK: BULK

---

You can click for product datasheet.
