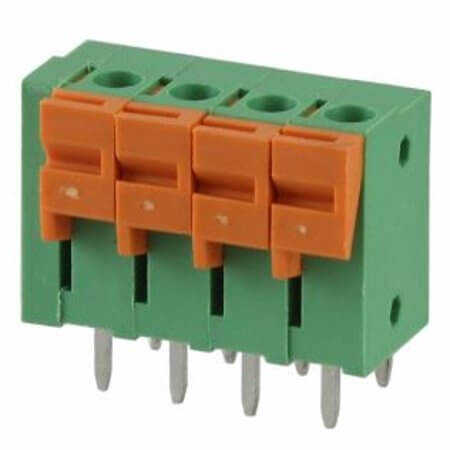

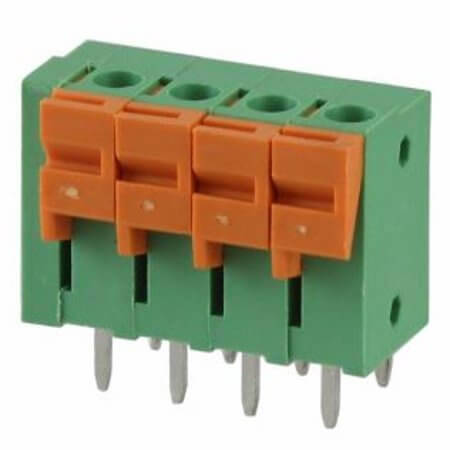

KLS2-142V-5.08-04P-4 TERM.BLK.5.08MM 4P PCB TYPE GREEN

KLS2-142V-5.08-04P-4 TERM.BLK.5.08MM 4P PCB TYPE GREEN Description

KLS2-142V-5.08-04P-4 TERM.BLK.5.08MM 4P PCB TYPE GREEN KLS2-142V-5.08-04P-4 is a reliable and efficient PCB terminal that supports an operating temperature range of -40°C~+105°C. Designed for wire gauges 22-14 AWG (1.5 mm²). Constructed using PA66+UL94V-0 housing, Stainless Steel clamps, and Brass+Tin Plated pins for durability. Manufactured by KLS ELECTRONIC with compliance to ROHS standards. Packaged in BULK packaging for secure handling.

KLS2-142V-5.08-04P-4 TERM.BLK.5.08MM 4P PCB TYPE GREEN Technical Specifications

• Manufacturer: KLS ELECTRONIC
• Series: KLS2-142V
• Gender: None
• WireTermination: Screwless
• NumberofPins: 4 Pins
• NumberOfLevel: 1
• PositionsOfLevel: 4
• Pitch: 5.08mm
• MountingType: THT V/T
• WireEntry: 180°
• ProfileHeight: 13.88mm
• Current: 10.0A
• Voltage: 300V
• OperatingTemperature: -40°C~+105°C
• WireGauge(AWG): 22-14 AWG
• WireGauge(mm²): 1.5 mm²
• HousingMaterial: PA66+UL94V-0
• ClampMaterial: Stainless Steel
• PinMaterial: Brass+Tin Plated
• Color: Green
• Side: None
• Rohs: ROHS
• BULK: BULK

---

You can click for product datasheet.
