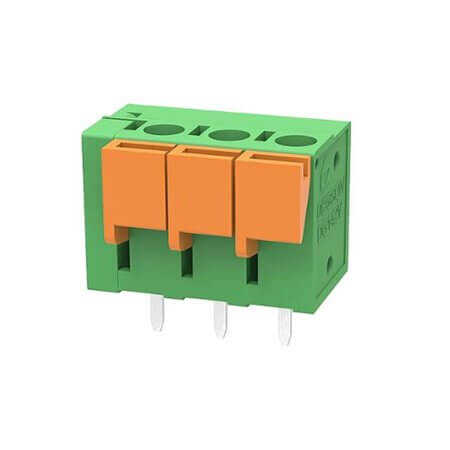

DG142V-5.08-03P-14-1000A TERM.BLK.5.08MM 3P PCB SPRING TYPE GREEN

DG142V-5.08-03P-14-1000A TERM.BLK.5.08MM 3P PCB SPRING TYPE GREEN Description

DG142V-5.08-03P-14-1000A TERM.BLK.5.08MM 3P PCB SPRING TYPE GREEN DG142V-5.08-03P-14-1000A is a reliable and efficient PCB terminal that supports an operating temperature range of -40°C~+105°C. Designed for wire gauges 22-16 AWG (0.2-1.5 mm²). Constructed using PA66+UL94V-0 housing, Stainless Steel clamps, and Brass+Tin Plated pins for durability. Manufactured by DEGSON with compliance to ROHS standards. Packaged in BULK packaging for secure handling.

DG142V-5.08-03P-14-1000A TERM.BLK.5.08MM 3P PCB SPRING TYPE GREEN Technical Specifications

• Manufacturer: DEGSON
• Series: DG142V
• Gender: None
• WireTermination: Screwless
• NumberofPins: 3 Pins
• NumberOfLevel: 1
• PositionsOfLevel: 3
• Pitch: 5.08mm
• MountingType: THT V/T
• WireEntry: None
• ProfileHeight: 14.10mm
• Current: 10.0A
• Voltage: 300V
• OperatingTemperature: -40°C~+105°C
• WireGauge(AWG): 22-16 AWG
• WireGauge(mm²): 0.2-1.5 mm²
• HousingMaterial: PA66+UL94V-0
• ClampMaterial: Stainless Steel
• PinMaterial: Brass+Tin Plated
• Color: Green
• Side: None
• Rohs: ROHS
• BULK: BULK

---
