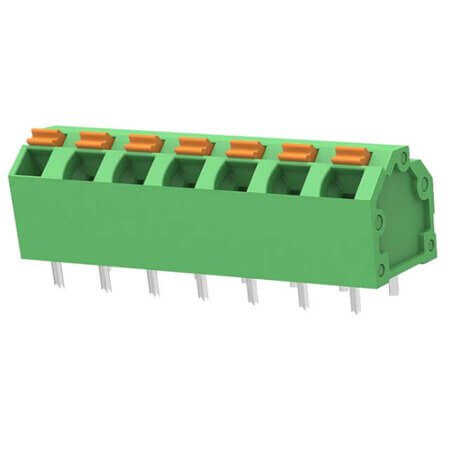

DG246-5.08-07P-14-00AH TERM.BLK.5.08MM 7P PCB SPRING-PRINT TYPE GREEN

DG246-5.08-07P-14-00AH TERM.BLK.5.08MM 7P PCB SPRING-PRINT TYPE GREEN Description

DG246-5.08-07P-14-00AH TERM.BLK.5.08MM 7P PCB SPRING-PRINT TYPE GREEN DG246-5.08-07P-14-00AH is a reliable and efficient PCB terminal that supports an operating temperature range of -40°C~+105°C. Designed for wire gauges 26-16 AWG (0.2-1.5 mm²). Constructed using PA66+UL94V-0 housing, N/A clamps, and Copper Alloy+Sn Plated pins for durability. Manufactured by DEGSON with compliance to ROHS standards. Packaged in BULK packaging for secure handling.

DG246-5.08-07P-14-00AH TERM.BLK.5.08MM 7P PCB SPRING-PRINT TYPE GREEN Technical Specifications

• Manufacturer: DEGSON
• Series: DG246
• Gender: None
• WireTermination: Screwless
• NumberofPins: 7 Pins
• NumberOfLevel: 1
• PositionsOfLevel: 7
• Pitch: 5.08mm
• MountingType: THT R/A
• WireEntry: 180°
• ProfileHeight: 12.50mm
• Current: 9.0A
• Voltage: 300V
• OperatingTemperature: -40°C~+105°C
• WireGauge(AWG): 26-16 AWG
• WireGauge(mm²): 0.2-1.5 mm²
• HousingMaterial: PA66+UL94V-0
• ClampMaterial: N/A
• PinMaterial: Copper Alloy+Sn Plated
• Color: Green
• Side: None
• Rohs: ROHS
• BULK: BULK

---

You can click for product datasheet.
