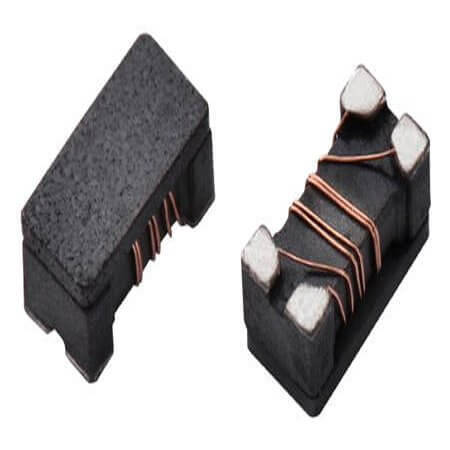

WCB2012-371Y-N CHOKE COMMON MODE 370R 280mA SMT

WCB2012-371Y-N CHOKE COMMON MODE 370R 280mA SMT Description

WCB2012-371Y-N CHOKE COMMON MODE 370R 280mA SMT The product WCB2012-371Y-N (CHOKE COMMON MODE 370R 280mA SMT) is a high-quality common mode choke designed for efficient noise suppression. Manufactured by CORE MASTER, it features an inductance of None and a DC resistance of 400m Ohms. Built for General Purpose, it is suitable for various applications. The compact design measures 2.00mm x 1.20mm x 1.30mm and operates within a temperature range of N/A. Packaged in TAPE&REEL format, this choke complies with ROHS standards, making it a reliable choice for modern systems.

WCB2012-371Y-N CHOKE COMMON MODE 370R 280mA SMT Technical Specifications

• Manufacturer: CORE MASTER
• Series: WCB
• MountingType: SMT
• Package/Case: 0805 (2012 Metric)
• Pitch: None
• Technology: Wire Wound
• Shielding: Unshielded
• FilterType: Line Filter
• NumberofLines: 2
• Inductance: None
• Impedance: 370 Ohms
• Current: 280mA
• Tolerance: ±25%
• DCResistance(DCR): 400m Ohms
• Applications: General Purpose
• Diameter:
• Length: 2.00mm
• Width: 1.20mm
• Height: 1.30mm
• OperationTemperature:
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
