P0469NL CHOKE COMMON MODE 11.6A 2LN SMD

P0469NL CHOKE COMMON MODE 11.6A 2LN SMD Description

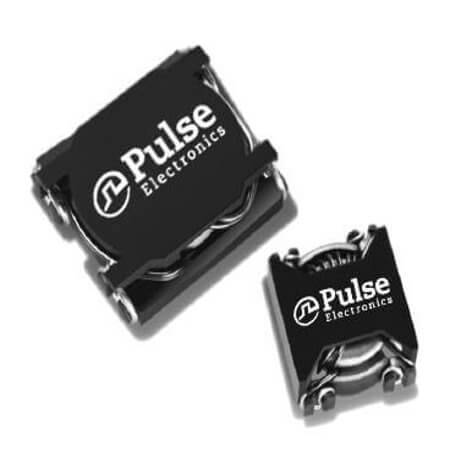

P0469NL CHOKE COMMON MODE 11.6A 2LN SMD The product P0469NL (CHOKE COMMON MODE 11.6A 2LN SMD) is a high-quality common mode choke designed for efficient noise suppression. Manufactured by PULSE, it features an inductance of 630uH and a DC resistance of 10m Ohms. Built for General Purpose, it is suitable for various applications. The compact design measures 30.99mm x 25.40mm x 12.70mm and operates within a temperature range of -40°C ~ +120°C. Packaged in TUBE format, this choke complies with ROHS standards, making it a reliable choice for modern systems.

P0469NL CHOKE COMMON MODE 11.6A 2LN SMD Technical Specifications

• Manufacturer: PULSE
• Series: PO
• MountingType: SMT
• Package/Case: Non Standard
• Pitch: None
• Technology: Wire Wound
• Shielding: Shielded
• FilterType: Power Line Filter
• NumberofLines: 2
• Inductance: 630uH
• Impedance: None
• Current: 11.6A
• Tolerance: ±35%
• DCResistance(DCR): 10m Ohms
• Applications: General Purpose
• Diameter:
• Length: 30.99mm
• Width: 25.40mm
• Height: 12.70mm
• OperationTemperature: -40°C ~ +120°C
• Rohs: ROHS
• Packaging: TUBE

---

You can click for product datasheet.
