DLW21SN261SQ2L CMC 300MA 2LN 260 OHM SMD

DLW21SN261SQ2L CMC 300MA 2LN 260 OHM SMD Description

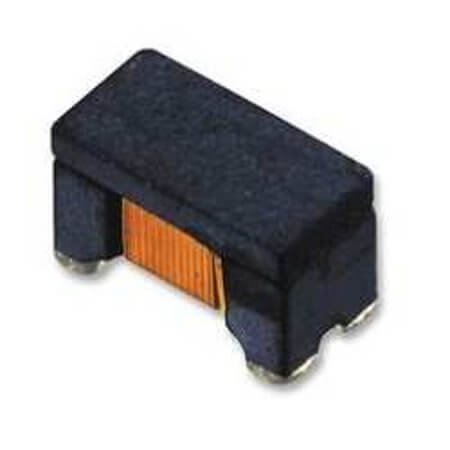

DLW21SN261SQ2L CMC 300MA 2LN 260 OHM SMD The product DLW21SN261SQ2L (CMC 300MA 2LN 260 OHM SMD) is a high-quality common mode choke designed for efficient noise suppression. Manufactured by MURATA, it features an inductance of None and a DC resistance of 400m Ohms. Built for General Purpose, it is suitable for various applications. The compact design measures 2.00mm x 1.20mm x 0.90mm and operates within a temperature range of -40°C ~ +85°C. Packaged in TAPE&REEL format, this choke complies with ROHS standards, making it a reliable choice for modern systems.

DLW21SN261SQ2L CMC 300MA 2LN 260 OHM SMD Technical Specifications

• Manufacturer: MURATA
• Series: DLW21
• MountingType: SMT
• Package/Case: 0805 (2012 Metric)
• Pitch: None
• Technology: Wire Wound
• Shielding: Unshielded
• FilterType: Signal Line Filter
• NumberofLines: 2
• Inductance: None
• Impedance: 260 Ohms
• Current: 300mA
• Tolerance: ±25%
• DCResistance(DCR): 400m Ohms
• Applications: General Purpose
• Diameter:
• Length: 2.00mm
• Width: 1.20mm
• Height: 0.90mm
• OperationTemperature: -40°C ~ +85°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
