PLT10HH501100PNL FILTER CMC 10A 2LN 500 OHM SMD AEC-Q200

PLT10HH501100PNL FILTER CMC 10A 2LN 500 OHM SMD AEC-Q200 Description

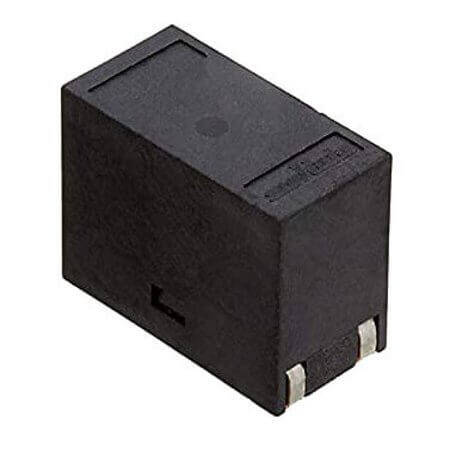

PLT10HH501100PNL FILTER CMC 10A 2LN 500 OHM SMD AEC-Q200 The product PLT10HH501100PNL (FILTER CMC 10A 2LN 500 OHM SMD AEC-Q200) is a high-quality common mode choke designed for efficient noise suppression. Manufactured by MURATA, it features an inductance of None and a DC resistance of 4.1m Ohms. Built for Automotive(AEC-Q200), it is suitable for various applications. The compact design measures 12.90mm x 6.60mm x 9.40mm and operates within a temperature range of -55°C ~ +125°C. Packaged in TAPE&REEL format, this choke complies with ROHS standards, making it a reliable choice for modern systems.

PLT10HH501100PNL FILTER CMC 10A 2LN 500 OHM SMD AEC-Q200 Technical Specifications

• Manufacturer: MURATA
• Series: PLT10
• MountingType: SMT
• Package/Case: Non Standard
• Pitch: None
• Technology: Wire Wound
• Shielding: Shielded
• FilterType: Power Line Filter
• NumberofLines: 2
• Inductance: None
• Impedance: 500 Ohms
• Current: 10A
• Tolerance: None
• DCResistance(DCR): 4.1m Ohms
• Applications: Automotive(AEC-Q200)
• Diameter:
• Length: 12.90mm
• Width: 6.60mm
• Height: 9.40mm
• OperationTemperature: -55°C ~ +125°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
