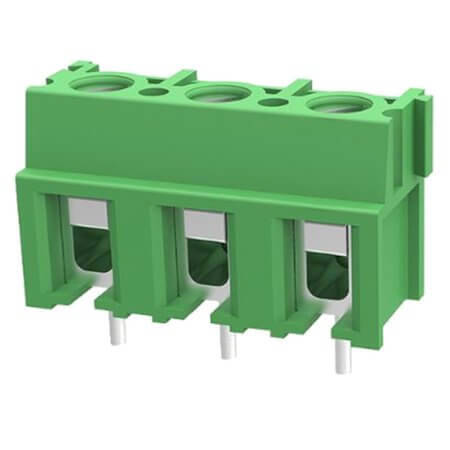

DG302-7.5-03P-14-00AH TERM.BLK.7.5MM 3P PCB TYPE

DG302-7.5-03P-14-00AH TERM.BLK.7.5MM 3P PCB TYPE Description

DG302-7.5-03P-14-00AH TERM.BLK.7.5MM 3P PCB TYPE DG302-7.5-03P-14-00AH is a reliable and efficient PCB terminal that supports an operating temperature range of -40°C~+105°C. Designed for wire gauges 20-12 AWG (0.5-4.0 mm²). Constructed using PA66+UL94V-0 housing, N/A clamps, and Copper Alloy+Sn Plated pins for durability. Manufactured by DEGSON with compliance to ROHS standards. Packaged in BULK packaging for secure handling.

DG302-7.5-03P-14-00AH TERM.BLK.7.5MM 3P PCB TYPE Technical Specifications

• Manufacturer: DEGSON
• Series: DG302
• Gender: Male
• WireTermination: Screw
• NumberofPins: 3 Pins
• NumberOfLevel: 1
• PositionsOfLevel: 3
• Pitch: 7.50mm
• MountingType: THT V/T
• WireEntry: 180°
• ProfileHeight: 13.50mm
• Current: 25.0A
• Voltage: 450V
• OperatingTemperature: -40°C~+105°C
• WireGauge(AWG): 20-12 AWG
• WireGauge(mm²): 0.5-4.0 mm²
• HousingMaterial: PA66+UL94V-0
• ClampMaterial: N/A
• PinMaterial: Copper Alloy+Sn Plated
• Color: Green
• Side: None
• Rohs: ROHS
• BULK: BULK

---

You can click for product datasheet.
