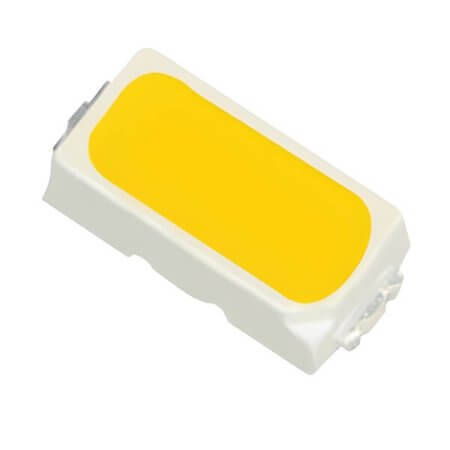

HL-A-3014H421W-S1-08HL-H LED SMD 3014 CW 6000-7000K MIN.13LM@30mA

HL-A-3014H421W-S1-08HL-H LED SMD 3014 CW 6000-7000K MIN.13LM@30mA Description

HL-A-3014H421W-S1-08HL-H LED SMD 3014 CW 6000-7000K MIN.13LM@30mA The HL-A-3014H421W-S1-08HL-H is a high-quality product offering LED SMD 3014 CW 6000-7000K MIN.13LM@30mA. With a shrink ratio of N/A and -40°C~+85°C operating temperature, it provides reliability in various applications.

HL-A-3014H421W-S1-08HL-H LED SMD 3014 CW 6000-7000K MIN.13LM@30mA Technical Specifications

• Manufacturer: HONGLITRONIC
• Color: Cool White
• MountingType: SMT
• Package/Case: 3014
• MountingStyle: Top View
• MaxPower: 128mW
• CCT: 6000-7000K
• Luminous Flux(25°C): 13lm
• Luminous Flux(85°C):
• Luminous Intensity(25°C):
• ForwardVoltage: 2.60-3.20V @ 25°C
• Forward Current: 40mA
• TestCurrent: 30mA
• CRI: 80
• ViewAngle: 120°
• ThermalResistance:
• Diameter:
• Length: 3.00mm
• Width: 1.40mm
• Height: 0.70mm
• OperatingTemperature: -40°C~+85°C
• Rohs: ROHS
• TAPE&REEL: TAPE&REEL
• ShrinkRatio:

---

You can click for product datasheet.
