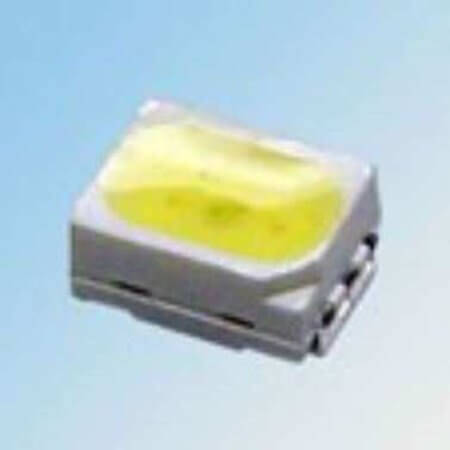

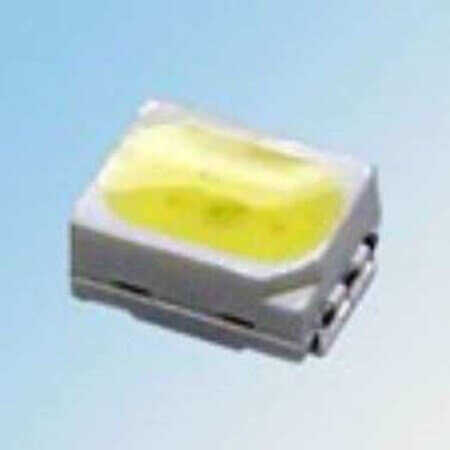

HLA3020H431WS1HR3-N42 LED SMD 3020 NW 4000-4250K 22-24LM@60mA

HLA3020H431WS1HR3-N42 LED SMD 3020 NW 4000-4250K 22-24LM@60mA Description

The HLA3020H431WS1HR3-N42 LED SMD 3020 NW 4000-4250K 22-24LM@60mA The HLA3020H431WS1HR3-N42 is a high-quality product offering LED SMD 3020 NW 4000-4250K 22-24LM@60mA. With a shrink ratio of N/A and -40°C~+85°C operating temperature, it provides reliability in various applications.

HLA3020H431WS1HR3-N42 LED SMD 3020 NW 4000-4250K 22-24LM@60mA Technical Specifications

• Manufacturer: HONGLITRONIC
• Color: Neutral White
• MountingType: SMT
• Package/Case: 3020
• MountingStyle: Top View
• MaxPower: 100mW
• CCT: 4000-4250K
• Luminous Flux(25°C): 22-24lm
• Luminous Flux(85°C):
• Luminous Intensity(25°C):
• ForwardVoltage: 2.80-3.40V @ 25°C
• Forward Current: 100mA
• TestCurrent: 60mA
• CRI: 80
• ViewAngle: 120°
• ThermalResistance: 100°C/W
• Diameter:
• Length: 3.00mm
• Width: 2.00mm
• Height: 1.30mm
• OperatingTemperature: -40°C~+85°C
• Rohs: ROHS
• TAPE&REEL: TAPE&REEL
• ShrinkRatio: N/A
