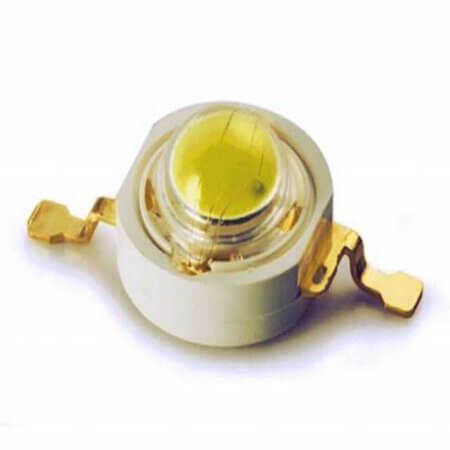

HLEF32W1NAMS(RA1)-2A LED POWER EMITTER CW 5700-6000K 100-145LM@350mA

HLEF32W1NAMS(RA1)-2A LED POWER EMITTER CW 5700-6000K 100-145LM@350mA Description

HLEF32W1NAMS(RA1)-2A LED POWER EMITTER CW 5700-6000K 100-145LM@350mA The HLEF32W1NAMS(RA1)-2A is a high-quality product offering LED POWER EMITTER CW 5700-6000K 100-145LM@350mA. With a shrink ratio of N/A and -20°C~+85°C operating temperature, it provides reliability in various applications.

HLEF32W1NAMS(RA1)-2A LED POWER EMITTER CW 5700-6000K 100-145LM@350mA Technical Specifications

• Manufacturer: HONGLITRONIC
• Color: Cool White
• MountingType: SMT
• Package/Case: 5252
• MountingStyle: Top View
• MaxPower: 1.28W
• CCT: 5700-6000K
• Luminous Flux(25°C): 100-145lm
• Luminous Flux(85°C):
• Luminous Intensity(25°C):
• ForwardVoltage: 3.00-3.60V @ 25°C
• Forward Current: 400mA
• TestCurrent: 350mA
• CRI: 70
• ViewAngle: 120°
• ThermalResistance: 11°C/W
• Diameter: 8.00mm
• Length:
• Width:
• Height: 5.20mm
• OperatingTemperature: -20°C~+85°C
• Rohs: ROHS
• TAPE&REEL: TAPE&REEL
• ShrinkRatio:

---

You can click for product datasheet.
