ASX6F-7.3728M-FC180C3 CRYSTAL 7.3728MHZ 18PF 6X3.5MM 20ppm SMD TR

ASX6F-7.3728M-FC180C3 CRYSTAL 7.3728MHZ 18PF 6X3.5MM 20ppm SMD TR Description

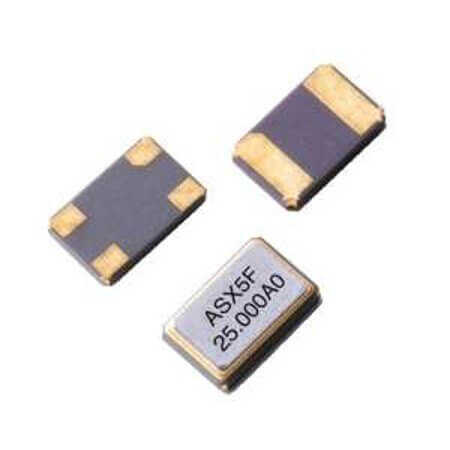

ASX6F-7.3728M-FC180C3 CRYSTAL 7.3728MHZ 18PF 6X3.5MM 20ppm SMD TR ASX6F-7.3728M-FC180C3 is a high-performance crystal component that operates at a frequency of 7.3728MHz with a frequency stability of ±20PPM.Features equivalent series resistance (ESR) of 150 Ohms. Compact dimensions: length 6.00mm, width 3.50mm, and height 1.10mm. Supports a temperature range of -20°C~+70°C for reliable performance. Manufactured by ANSEN with compliance to ROHS standards. Packaged as TAPE&REEL for convenience.

ASX6F-7.3728M-FC180C3 CRYSTAL 7.3728MHZ 18PF 6X3.5MM 20ppm SMD TR Technical Specifications

• Manufacturer: ANSEN
• MountingType: SMT
• Series: ASX6F
• Package/Case: 4-SMD
• Frequency: 7.3728MHz
• Capacitance: 18pF
• FrequencyTolerance: ±20PPM
• FrequencyStability: ±20PPM
• EquivalentSeriesResistance(ESR): 150 Ohms
• Applications:
• Diameter:
• Length: 6.00mm
• Width: 3.50mm
• Height: 1.10mm
• OperatingTemperature: -20°C~+70°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
