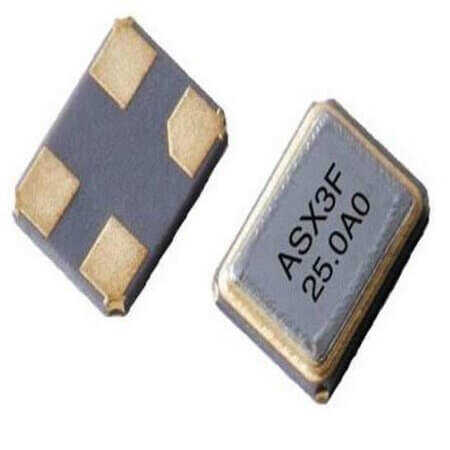

403I35E16M00000 CRYSTAL 16.0000MHZ 20PF SMD

403I35E16M00000 CRYSTAL 16.0000MHZ 20PF SMD Description

403I35E16M00000 CRYSTAL 16.0000MHZ 20PF SMD 403I35E16M00000 is a high-performance crystal component that operates at a frequency of 16MHz with a frequency stability of ±50PPM.Features equivalent series resistance (ESR) of 80 Ohms. Compact dimensions: length 3.20mm, width 2.50mm, and height 0.75mm. Supports a temperature range of -40°C~+85°C for reliable performance. Manufactured by CTS with compliance to ROHS standards. Packaged as TAPE&REEL for convenience.

403I35E16M00000 CRYSTAL 16.0000MHZ 20PF SMD Technical Specifications

• Manufacturer: CTS
• MountingType: SMT
• Series: 403
• Package/Case: 4-SMD
• Frequency: 16MHz
• Capacitance: 20pF
• FrequencyTolerance: ±30PPM
• FrequencyStability: ±50PPM
• EquivalentSeriesResistance(ESR): 80 Ohms
• Applications:
• Diameter:
• Length: 3.20mm
• Width: 2.50mm
• Height: 0.75mm
• OperatingTemperature: -40°C~+85°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
