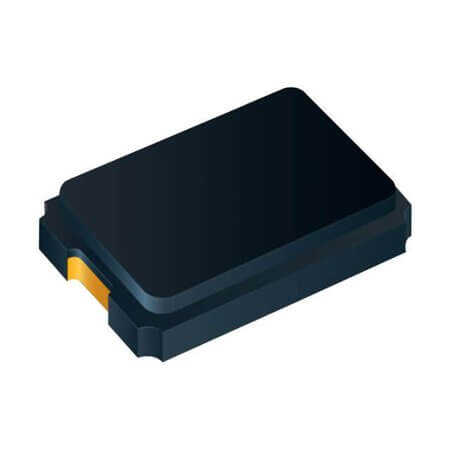

CX3225GB10000P0HPQCC CRYSTAL 10.0000MHZ 18PF SMD

CX3225GB10000P0HPQCC CRYSTAL 10.0000MHZ 18PF SMD Description

CX3225GB10000P0HPQCC CRYSTAL 10.0000MHZ 18PF SMD CX3225GB10000P0HPQCC is a high-performance crystal component that operates at a frequency of 10MHz with a frequency stability of ±30PPM.Features equivalent series resistance (ESR) of 60 Ohms. Compact dimensions: length 3.20mm, width 2.50mm, and height 0.80mm. Supports a temperature range of -40°C~+85°C for reliable performance. Manufactured by KYOCERA AVX with compliance to ROHS standards. Packaged as TAPE&REEL for convenience.

CX3225GB10000P0HPQCC CRYSTAL 10.0000MHZ 18PF SMD Technical Specifications

• Manufacturer: KYOCERA AVX
• MountingType: SMT
• Series: CX3225GB
• Package/Case: 2-SMD
• Frequency: 10MHz
• Capacitance: 18pF
• FrequencyTolerance: ±20PPM
• FrequencyStability: ±30PPM
• EquivalentSeriesResistance(ESR): 60 Ohms
• Applications:
• Diameter:
• Length: 3.20mm
• Width: 2.50mm
• Height: 0.80mm
• OperatingTemperature: -40°C~+85°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
