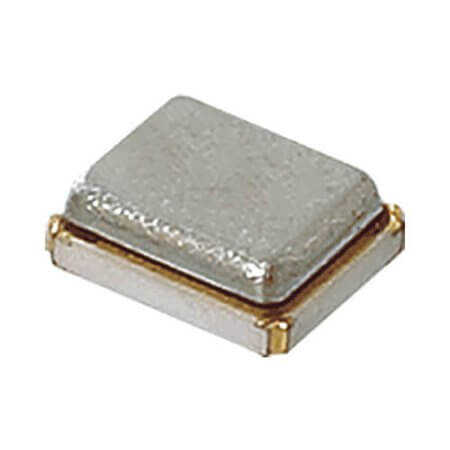

XRCGB32M000F2P01R0 CRYSTAL 32.0000MHZ 8PF SMD

XRCGB32M000F2P01R0 CRYSTAL 32.0000MHZ 8PF SMD Description

XRCGB32M000F2P01R0 CRYSTAL 32.0000MHZ 8PF SMD XRCGB32M000F2P01R0 is a high-performance crystal component that operates at a frequency of 32MHz with a frequency stability of ±20PPM.Features equivalent series resistance (ESR) of 100 Ohms. Compact dimensions: length 2.00mm, width 1.60mm, and height 0.65mm. Supports a temperature range of -30°C~+85°C for reliable performance. Manufactured by MURATA with compliance to ROHS standards. Packaged as TAPE&REEL for convenience.

XRCGB32M000F2P01R0 CRYSTAL 32.0000MHZ 8PF SMD Technical Specifications

• Manufacturer: MURATA
• MountingType: SMT
• Series: XRCGB
• Package/Case: 4-SMD
• Frequency: 32MHz
• Capacitance: 8pF
• FrequencyTolerance: ±20PPM
• FrequencyStability: ±20PPM
• EquivalentSeriesResistance(ESR): 100 Ohms
• Applications:
• Diameter:
• Length: 2.00mm
• Width: 1.60mm
• Height: 0.65mm
• OperatingTemperature: -30°C~+85°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
