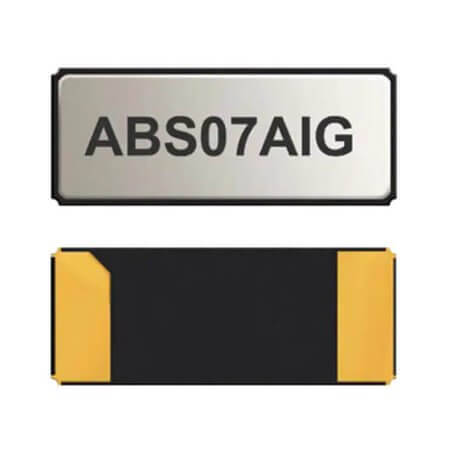

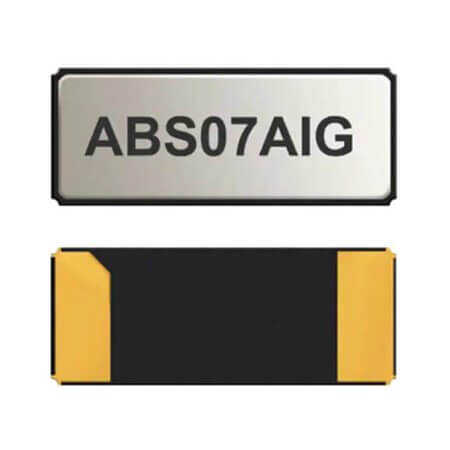

ABS07AIG-32.768KHZ-T CRYSTAL 32.768KHZ 12.5PF 20PPM 2-SMD

ABS07AIG-32.768KHZ-T CRYSTAL 32.768KHZ 12.5PF 20PPM 2-SMD Description

ABS07AIG-32.768KHZ-T CRYSTAL 32.768KHZ 12.5PF 20PPM 2-SMD ABS07AIG-32.768KHZ-T is a high-performance crystal component that operates at a frequency of 32.768KHz with a frequency stability of nan.Features equivalent series resistance (ESR) of 80K Ohms. Compact dimensions: length 3.20mm, width 1.50mm, and height 0.90mm. Supports a temperature range of -40°C~+125°C for reliable performance. Manufactured by ABRACON with compliance to ROHS standards. Packaged as TAPE&REEL for convenience.

ABS07AIG-32.768KHZ-T CRYSTAL 32.768KHZ 12.5PF 20PPM 2-SMD Technical Specifications

• Manufacturer: ABRACON
• MountingType: SMT
• Series: ABS07AIG
• Package/Case: 2-SMD
• Frequency: 32.768KHz
• Capacitance: 12.5pF
• FrequencyTolerance: ±20PPM
• FrequencyStability:
• EquivalentSeriesResistance(ESR): 80K Ohms
• Applications: Automotive(AEC-Q200)
• Diameter:
• Length: 3.20mm
• Width: 1.50mm
• Height: 0.90mm
• OperatingTemperature: -40°C~+125°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
