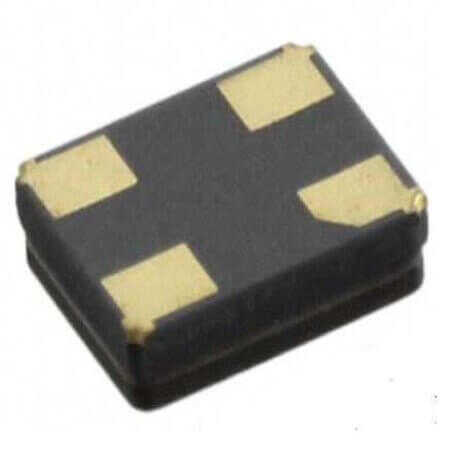

ABM8G-26.000 MHZ-4Y-T3 CRYSTAL 26MHZ 10PF SMD

ABM8G-26.000 MHZ-4Y-T3 CRYSTAL 26MHZ 10PF SMD Description

ABM8G-26.000 MHZ-4Y-T3 CRYSTAL 26MHZ 10PF SMD ABM8G-26.000 MHZ-4Y-T3 is a high-performance crystal component that operates at a frequency of 26MHz with a frequency stability of ±30PPM.Features equivalent series resistance (ESR) of 60 Ohms. Compact dimensions: length 3.20mm, width 2.50mm, and height 1.00mm. Supports a temperature range of -10°C~+60°C for reliable performance. Manufactured by ABRACON with compliance to ROHS standards. Packaged as TAPE&REEL for convenience.

ABM8G-26.000 MHZ-4Y-T3 CRYSTAL 26MHZ 10PF SMD Technical Specifications

• Manufacturer: ABRACON
• MountingType: SMT
• Series: ABM8G
• Package/Case: 4-SMD
• Frequency: 26MHz
• Capacitance: 10pF
• FrequencyTolerance: ±30PPM
• FrequencyStability: ±30PPM
• EquivalentSeriesResistance(ESR): 60 Ohms
• Applications:
• Diameter:
• Length: 3.20mm
• Width: 2.50mm
• Height: 1.00mm
• OperatingTemperature: -10°C~+60°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
