LFU09V-102(0.35MM) CHOKE COMMON MODE 1mH/1kHz

LFU09V-102(0.35MM) CHOKE COMMON MODE 1mH/1kHz Description

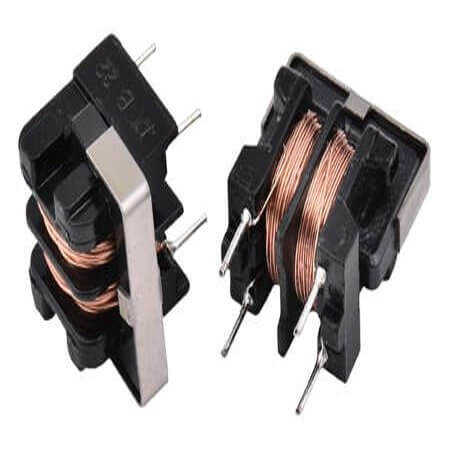

LFU09V-102(0.35MM) CHOKE COMMON MODE 1mH/1kHz The product LFU09V-102(0.35MM) (CHOKE COMMON MODE 1mH/1kHz) is a high-quality common mode choke designed for efficient noise suppression. Manufactured by CORE MASTER, it features an inductance of 1mH and a DC resistance of 250m Ohms. Built for General Purpose, it is suitable for various applications. The compact design measures 17.00mm x 13.50mm x 17.00mm and operates within a temperature range of N/A. Packaged in TRAY format, this choke complies with ROHS standards, making it a reliable choice for modern systems.

LFU09V-102(0.35MM) CHOKE COMMON MODE 1mH/1kHz Technical Specifications

• Manufacturer: CORE MASTER
• Series: LFU
• MountingType: THT
• Package/Case: Non Standard
• Pitch:
• Technology: Wire Wound
• Shielding: Unshielded
• FilterType: Line Filter
• NumberofLines: 2
• Inductance: 1mH
• Impedance: None
• Current: 700mA
• Tolerance:
• DCResistance(DCR): 250m Ohms
• Applications: General Purpose
• Diameter:
• Length: 17.00mm
• Width: 13.50mm
• Height: 17.00mm
• OperationTemperature:
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
