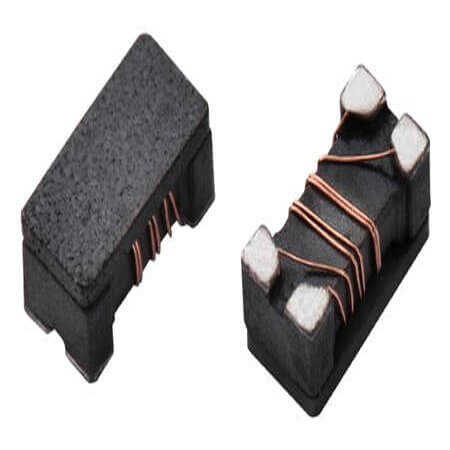

744230251 CHOKE COMMON MODE CMC 350MA 2LN 250 OHM SMD

744230251 CHOKE COMMON MODE CMC 350MA 2LN 250 OHM SMD Description

744230251 CHOKE COMMON MODE CMC 350MA 2LN 250 OHM SMD The product 744230251 (CHOKE COMMON MODE CMC 350MA 2LN 250 OHM SMD) is a high-quality common mode choke designed for efficient noise suppression. Manufactured by WURTH, it features an inductance of 279nH and a DC resistance of 280m Ohms. Built for General Purpose, it is suitable for various applications. The compact design measures 1.60mm x 0.85mm x 1.10mm and operates within a temperature range of -40°C ~ +105°C. Packaged in TAPE&REEL format, this choke complies with ROHS standards, making it a reliable choice for modern systems.

744230251 CHOKE COMMON MODE CMC 350MA 2LN 250 OHM SMD Technical Specifications

• Manufacturer: WURTH
• Series: CNSW
• MountingType: SMT
• Package/Case: Non Standard
• Pitch: None
• Technology: Wire Wound
• Shielding: Unshielded
• FilterType: Line Filter
• NumberofLines: 2
• Inductance: 279nH
• Impedance: 250 Ohms
• Current: 350mA
• Tolerance: ±25%
• DCResistance(DCR): 280m Ohms
• Applications: General Purpose
• Diameter:
• Length: 1.60mm
• Width: 0.85mm
• Height: 1.10mm
• OperationTemperature: -40°C ~ +105°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
