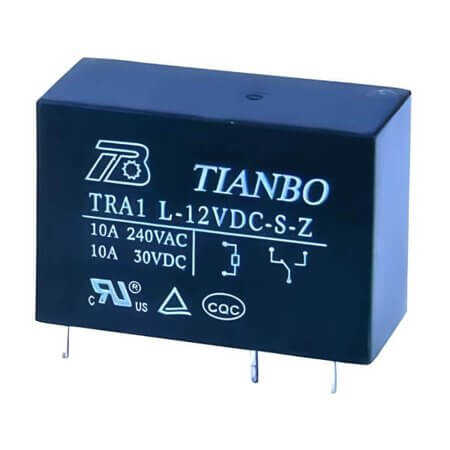

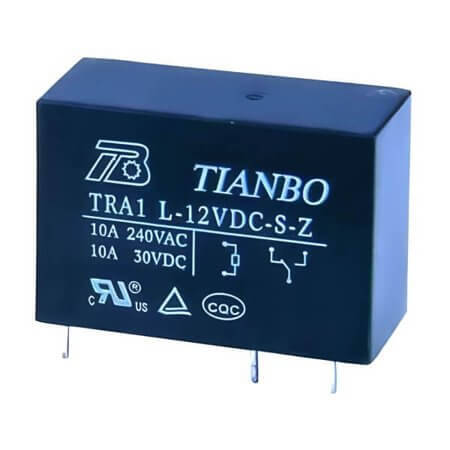

TRA1-L-12VDC-S-Z RELAY POWER 10A 12VDC 1FromC

TRA1-L-12VDC-S-Z RELAY POWER 10A 12VDC 1FromC Description

TRA1-L-12VDC-S-Z RELAY POWER 10A 12VDC 1FromC TRA1-L-12VDC-S-Z is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 240VAC/30VDC and coil resistance of 270 Ohms. Features a coil power of 540mW and operates within a temperature range of -40°C~+85°C.Compact design with dimensions: length 29.00mm, width 12.70mm, and height 20.40mm.Manufactured by TIANBO and compliant with ROHS standards. Packaged as TUBE for convenience.

TRA1-L-12VDC-S-Z RELAY POWER 10A 12VDC 1FromC Technical Specifications

• Manufacturer: TIANBO
• RelayType: Relay Power
• Series: TRA1
• MountingType: THT
• ContactForm: SPDT (1 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 10A
• ContactCurrent(Max):
• CoilVoltage: 12VDC
• CoilCurrent: 45mA
• ContactVoltage: 240VAC/30VDC
• CoilResistance: 270 Ohms
• CoilPower: 540mW
• OperatingTemperature: -40°C~+85°C
• NumberofPins: 5 Pin
• Length: 29.00mm
• Width: 12.70mm
• Height: 20.40mm
• Rohs: ROHS
• Packaging: TUBE

---

You can click for product datasheet.
