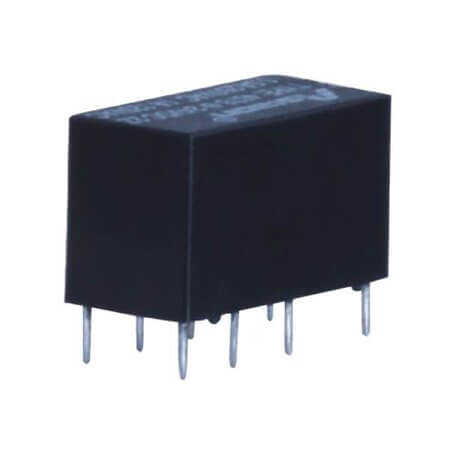

JRC-19F-48VDC-DRAGON RELAY 2A 48VDC 2PNC TELECOM (DS2) DRAGON

JRC-19F-48VDC-DRAGON RELAY 2A 48VDC 2PNC TELECOM (DS2) DRAGON Description

JRC-19F-48VDC-DRAGON RELAY 2A 48VDC 2PNC TELECOM (DS2) DRAGON JRC-19F-48VDC-DRAGON is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 125VAC/30VDC and coil resistance of 4K Ohms. Features a coil power of 360mW and operates within a temperature range of nan.Compact design with dimensions: length 21.00mm, width 10.00mm, and height 12.00mm.Manufactured by ASIA DRAGON and compliant with ROHS standards. Packaged as TUBE for convenience.

JRC-19F-48VDC-DRAGON RELAY 2A 48VDC 2PNC TELECOM (DS2) DRAGON Technical Specifications

• Manufacturer: ASIA DRAGON
• RelayType: Relay Telecom
• Series: JRC-19F
• MountingType: THT
• ContactForm: DPDT (2 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 1A
• ContactCurrent(Max): 2A
• CoilVoltage: 48VDC
• CoilCurrent:
• ContactVoltage: 125VAC/30VDC
• CoilResistance: 4K Ohms
• CoilPower: 360mW
• OperatingTemperature:
• NumberofPins: 8 Pin
• Length: 21.00mm
• Width: 10.00mm
• Height: 12.00mm
• Rohs: ROHS
• Packaging: TUBE

---

You can click for product datasheet.
