SS345PT SENSOR MAGNETIC SWITCH UNIPOLAR SOT23-3

SS345PT SENSOR MAGNETIC SWITCH UNIPOLAR SOT23-3 Description

SS345PT SENSOR MAGNETIC SWITCH UNIPOLAR SOT23-3 The product SS345PT (SENSOR MAGNETIC SWITCH UNIPOLAR SOT23-3) is a high-performance magnetic sensor designed for accurate and reliable measurements. Leveraging Hall Effect technology, it features an output type of Open Collector and operates within a supply voltage range of 2.7V to 7V. With a supply current of 14mA and an output current of 4mA, this sensor ensures efficient and stable operation. It supports a sensing range of -28mT Trip, -2.5mT Release and functions effectively across an operating temperature range of -40°C~+150°C. Packaged in TAPE&REEL format and compliant with ROHS standards, it is an excellent choice for modern electronic applications.

SS345PT SENSOR MAGNETIC SWITCH UNIPOLAR SOT23-3 Technical Specifications

• Manufacturer: HONEYWELL
• Features: Unipolar Hall-Effect Digital Position Sensors with Built-in Pull-Up Resistor
• MountingType: SMT

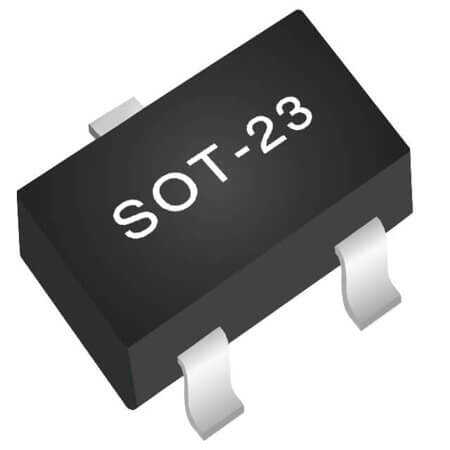

• Package/Case: SOT23
• Function: Unipolar Switch
• OutputTime(Rise/Fall):
• ManyeticFluxDensity:
• Polarization: North Pole
• Technology: Hall Effect
• OutputType: Open Collector
• SupplyVoltage: 2.7V to 7V
• SupplyCurrent: 14mA
• CurrentOutput: 4mA
• OutputVoltage:
• SensingRange: -28mT Trip, -2.5mT Release
• OperatingTemperature: -40°C~+150°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
