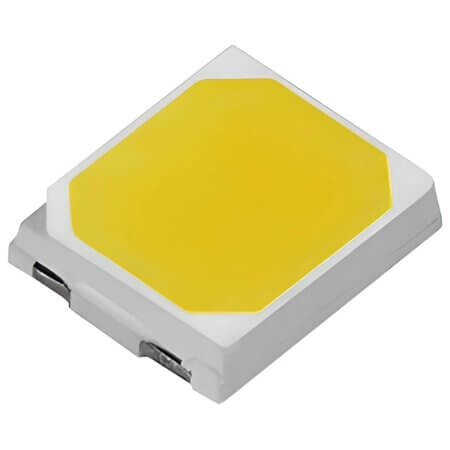

T28351-W64SC2D0FB4B7-AB0 LED SMD 2835 CW 6500K(5SDCM) min.24LM@60mA 80CRI

T28351-W64SC2D0FB4B7-AB0 LED SMD 2835 CW 6500K(5SDCM) min.24LM@60mA 80CRI Description

T28351-W64SC2D0FB4B7-AB0 LED SMD 2835 CW 6500K(5SDCM) min.24LM@60mA 80CRI The T28351-W64SC2D0FB4B7-AB0 is a high-quality product offering LED SMD 2835 CW 6500K(5SDCM) min.24LM@60mA 80CRI. With a shrink ratio of N/A and nan operating temperature, it provides reliability in various applications.

T28351-W64SC2D0FB4B7-AB0 LED SMD 2835 CW 6500K(5SDCM) min.24LM@60mA 80CRI Technical Specifications

• Manufacturer: RUNLITE
• Color: Cool White
• MountingType: SMT
• Package/Case: 2835
• MountingStyle: Top View
• MaxPower:
• CCT: 6500K
• Luminous Flux(25°C):
• Luminous Flux(85°C): 24lm
• Luminous Intensity(25°C):
• ForwardVoltage: 3.00V @ 85°C
• Forward Current: 75mA
• TestCurrent: 60mA
• CRI: 80
• ViewAngle: 120°
• ThermalResistance: 30°C/W
• Diameter:
• Length: 2.80mm
• Width: 3.50mm
• Height: 0.65mm
• OperatingTemperature:
• Rohs: ROHS
• TAPE&REEL: TAPE&REEL
• ShrinkRatio:

---

You can click for product datasheet.
