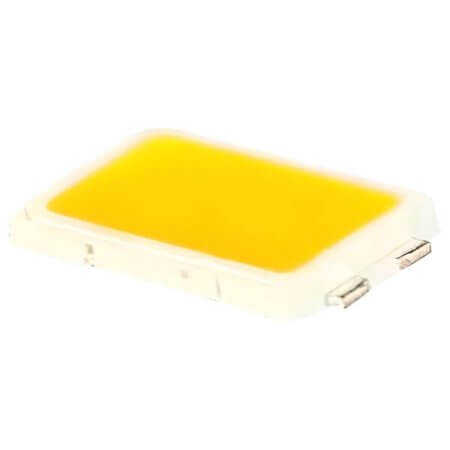

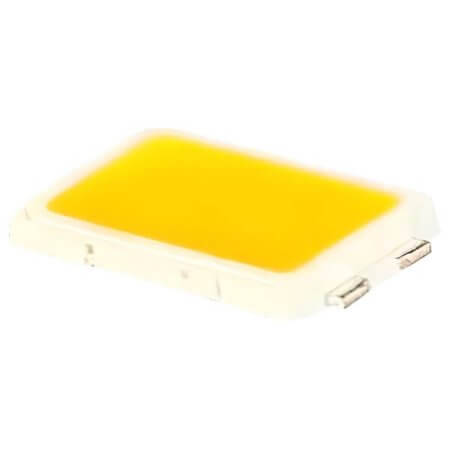

STW8Q14D T5B42Y1 LED SMD 5630 CW 5300-5450K 33,4-35LM@65mA

STW8Q14D T5B42Y1 LED SMD 5630 CW 5300-5450K 33,4-35LM@65mA Description

STW8Q14D T5B42Y1 LED SMD 5630 CW 5300-5450K 33,4-35LM@65mA The STW8Q14D T5B42Y1 is a high-quality product offering LED SMD 5630 CW 5300-5450K 33,4-35LM@65mA. With a shrink ratio of N/A and -40°C~+85°C operating temperature, it provides reliability in various applications.

STW8Q14D T5B42Y1 LED SMD 5630 CW 5300-5450K 33,4-35LM@65mA Technical Specifications

• Manufacturer: SEOUL
• Color: Cool White
• MountingType: SMT
• Package/Case: 5630
• MountingStyle: Top View
• MaxPower: 680mW
• CCT: 5300-5450K
• Luminous Flux(25°C): 33.40-35lm
• Luminous Flux(85°C):
• Luminous Intensity(25°C): 10.50-11cd
• ForwardVoltage: 2.70-2.80V @ 25°C
• Forward Current: 200mA
• TestCurrent: 65mA
• CRI: 80
• ViewAngle: 120°
• ThermalResistance: 15°C/W
• Diameter:
• Length: 5.60mm
• Width: 3.00mm
• Height: 0.65mm
• OperatingTemperature: -40°C~+85°C
• Rohs: ROHS
• TAPE&REEL: TAPE&REEL
• ShrinkRatio:

---

You can click for product datasheet.
