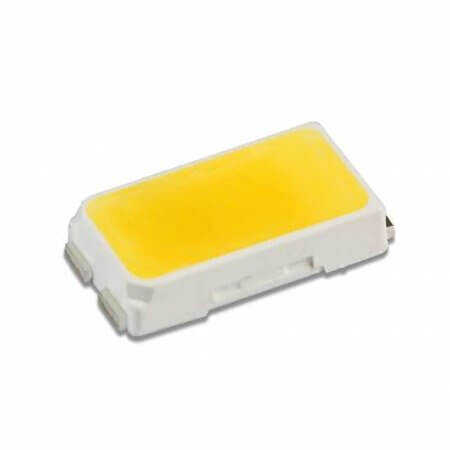

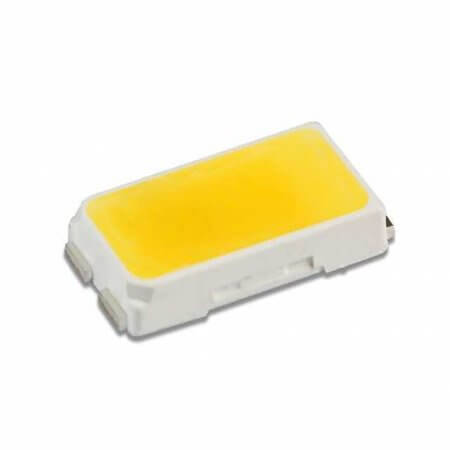

STW8Q14C W5A13Y2 LED SMD 5630 CW 6500K 41,9-45LM@100mA

STW8Q14C W5A13Y2 LED SMD 5630 CW 6500K 41,9-45LM@100mA Description

STW8Q14C W5A13Y2 LED SMD 5630 CW 6500K 41,9-45LM@100mA The STW8Q14C W5A13Y2 is a high-quality product offering LED SMD 5630 CW 6500K 41,9-45LM@100mA. With a shrink ratio of N/A and -40°C~+85°C operating temperature, it provides reliability in various applications.

STW8Q14C W5A13Y2 LED SMD 5630 CW 6500K 41,9-45LM@100mA Technical Specifications

• Manufacturer: SEOUL
• Color: Cool White
• MountingType: SMT
• Package/Case: 5630
• MountingStyle: Top View
• MaxPower: 560mW
• CCT: 6750-7000K
• Luminous Flux(25°C): 41.90-45lm
• Luminous Flux(85°C):
• Luminous Intensity(25°C):
• ForwardVoltage: 2.80-2.90V @ 25°C
• Forward Current: 160mA
• TestCurrent: 100mA
• CRI: 80
• ViewAngle: 120°
• ThermalResistance: 18°C/W
• Diameter:
• Length: 5.60mm
• Width: 3.00mm
• Height: 0.75mm
• OperatingTemperature: -40°C~+85°C
• Rohs: ROHS
• TAPE&REEL: TAPE&REEL
• ShrinkRatio:

---

You can click for product datasheet.
