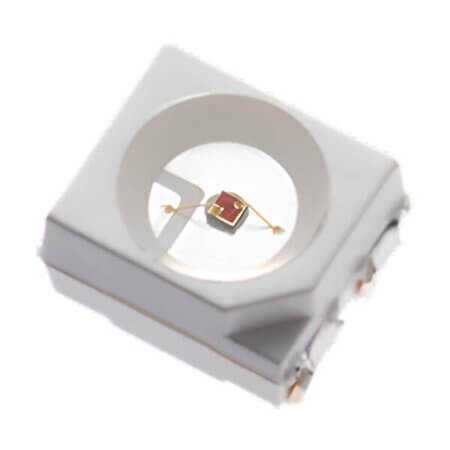

LTST-T680UWET LED SMD 3528 CW 6500K 6-10LM@20mA

LTST-T680UWET LED SMD 3528 CW 6500K 6-10LM@20mA Description

LTST-T680UWET LED SMD 3528 CW 6500K 6-10LM@20mA The LTST-T680UWET is a high-quality product offering LED SMD 3528 CW 6500K 6-10LM@20mA. With a shrink ratio of N/A and -40°C~+85°C operating temperature, it provides reliability in various applications.

LTST-T680UWET LED SMD 3528 CW 6500K 6-10LM@20mA Technical Specifications

• Manufacturer: LITEON
• Color: Cool White
• MountingType: SMT
• Package/Case: 3528
• MountingStyle: Top View
• MaxPower: 108mW
• CCT:
• Luminous Flux(25°C):
• Luminous Flux(85°C):
• Luminous Intensity(25°C): 2.10-3.30cd
• ForwardVoltage: 2.80-3.60V @ 25°C
• Forward Current: 30mA
• TestCurrent: 20mA
• CRI:
• ViewAngle: 120°
• ThermalResistance:
• Diameter:
• Length: 3.50mm
• Width: 2.80mm
• Height: 1.90mm
• OperatingTemperature: -40°C~+85°C
• Rohs: ROHS
• TAPE&REEL: TAPE&REEL
• ShrinkRatio:

---

You can click for product datasheet.
