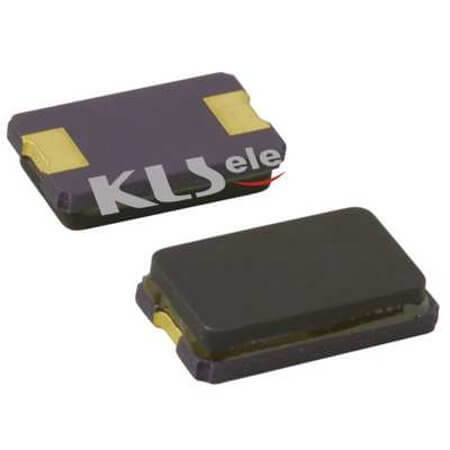

L-KLS14-SMD-6H-8.000-18- CRYSTAL 8MHZ 18pF 30ppm 2 CONTACT SMD

L-KLS14-SMD-6H-8.000-18- CRYSTAL 8MHZ 18pF 30ppm 2 CONTACT SMD Description

L-KLS14-SMD-6H-8.000-18- CRYSTAL 8MHZ 18pF 30ppm 2 CONTACT SMD L-KLS14-SMD-6H-8.000-18- is a high-performance crystal component that operates at a frequency of 8MHz with a frequency stability of ±30PPM.Features equivalent series resistance (ESR) of 70 Ohms. Compact dimensions: length 8.00mm, width 4.50mm, and height 1.50mm. Supports a temperature range of -40°C~+85°C for reliable performance. Manufactured by KLS ELECTRONIC with compliance to ROHS standards. Packaged as TAPE&REEL for convenience.

L-KLS14-SMD-6H-8.000-18- CRYSTAL 8MHZ 18pF 30ppm 2 CONTACT SMD Technical Specifications

• Manufacturer: KLS ELECTRONIC
• MountingType: SMT
• Series: SMD-6H
• Package/Case: 2-SMD
• Frequency: 8MHz
• Capacitance: 18pF
• FrequencyTolerance: ±30PPM
• FrequencyStability: ±30PPM
• EquivalentSeriesResistance(ESR): 70 Ohms
• Applications:
• Diameter:
• Length: 8.00mm
• Width: 4.50mm
• Height: 1.50mm
• OperatingTemperature: -40°C~+85°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---
