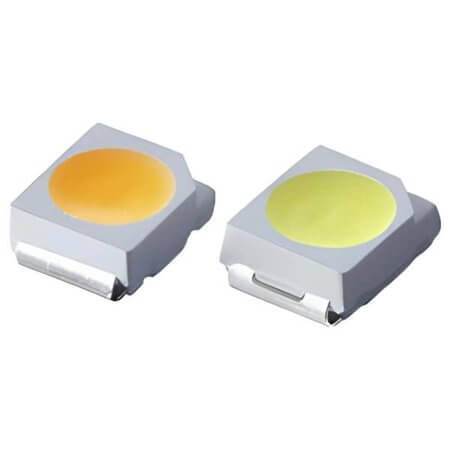

HLA3528H343WS113HR3-N53 LED SMD 3528 NW 4000K 8.3-9.3LM@20mA

HLA3528H343WS113HR3-N53 LED SMD 3528 NW 4000K 8.3-9.3LM@20mA Description

HLA3528H343WS113HR3-N53 LED SMD 3528 NW 4000K 8.3-9.3LM@20mA The HLA3528H343WS113HR3-N53 is a high-quality product offering LED SMD 3528 NW 4000K 8.3-9.3LM@20mA. With a shrink ratio of N/A and -40°C~+85°C operating temperature, it provides reliability in various applications.

HLA3528H343WS113HR3-N53 LED SMD 3528 NW 4000K 8.3-9.3LM@20mA Technical Specifications

• Manufacturer: HONGLITRONIC
• Color: Neutral White
• MountingType: SMT
• Package/Case: 3528
• MountingStyle: Top View
• MaxPower: 96mW
• CCT: 3800-4000K
• Luminous Flux(25°C): 7.30-7.80lm
• Luminous Flux(85°C):
• Luminous Intensity(25°C):
• ForwardVoltage: 2.60-3.20V @ 25°C
• Forward Current: 30mA
• TestCurrent: 20mA
• CRI: 80
• ViewAngle: 120°
• ThermalResistance: 100°C/W
• Diameter:
• Length: 3.50mm
• Width: 2.80mm
• Height: 1.40mm
• OperatingTemperature: -40°C~+85°C
• Rohs: ROHS
• TAPE&REEL: TAPE&REEL
• ShrinkRatio:

---

You can click for product datasheet.
