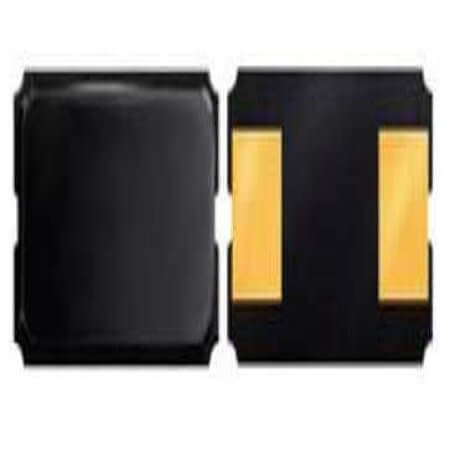

H130A-24.000-8-2030-TR CRYSTAL 24MHz 8pF 20PPM SMT

H130A-24.000-8-2030-TR CRYSTAL 24MHz 8pF 20PPM SMT Description

H130A-24.000-8-2030-TR CRYSTAL 24MHz 8pF 20PPM SMT H130A-24.000-8-2030-TR is a high-performance crystal component that operates at a frequency of 24MHz with a frequency stability of ±30PPM.Features equivalent series resistance (ESR) of 30 Ohms. Compact dimensions: length 5.00mm, width 3.20mm, and height 1.20mm. Supports a temperature range of -20°C~+70°C for reliable performance. Manufactured by RALTRON with compliance to ROHS standards. Packaged as TAPE&REEL for convenience.

H130A-24.000-8-2030-TR CRYSTAL 24MHz 8pF 20PPM SMT Technical Specifications

• Manufacturer: RALTRON
• MountingType: SMT
• Series: H130A
• Package/Case: 2-SMD
• Frequency: 24MHz
• Capacitance: 8pF
• FrequencyTolerance: ±20PPM
• FrequencyStability: ±30PPM
• EquivalentSeriesResistance(ESR): 30 Ohms
• Applications:
• Diameter:
• Length: 5.00mm
• Width: 3.20mm
• Height: 1.20mm
• OperatingTemperature: -20°C~+70°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
