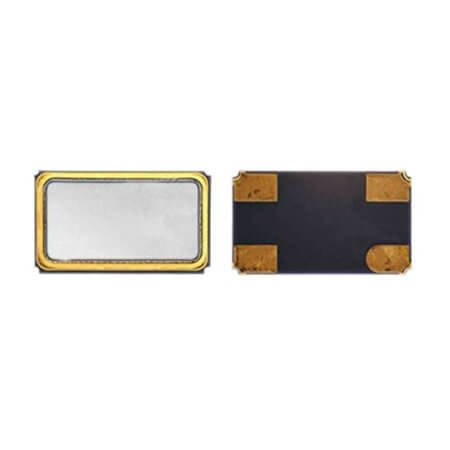

H10S-16.384-18-1030-TR CRYSTAL 16.384MHz 18pF 10PPM SMT

H10S-16.384-18-1030-TR CRYSTAL 16.384MHz 18pF 10PPM SMT Description

H10S-16.384-18-1030-TR CRYSTAL 16.384MHz 18pF 10PPM SMT H10S-16.384-18-1030-TR is a high-performance crystal component that operates at a frequency of 16.384MHz with a frequency stability of ±30PPM.Features equivalent series resistance (ESR) of 130 Ohms. Compact dimensions: length 6.00mm, width 3.50mm, and height 1.00mm. Supports a temperature range of -10°C~+60°C for reliable performance. Manufactured by RALTRON with compliance to ROHS standards. Packaged as TAPE&REEL for convenience.

H10S-16.384-18-1030-TR CRYSTAL 16.384MHz 18pF 10PPM SMT Technical Specifications

• Manufacturer: RALTRON
• MountingType: SMT
• Series: H10S
• Package/Case: 4-SMD
• Frequency: 16.384MHz
• Capacitance: 18pF
• FrequencyTolerance: ±10PPM
• FrequencyStability: ±30PPM
• EquivalentSeriesResistance(ESR): 130 Ohms
• Applications:
• Diameter:
• Length: 6.00mm
• Width: 3.50mm
• Height: 1.00mm
• OperatingTemperature: -10°C~+60°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
