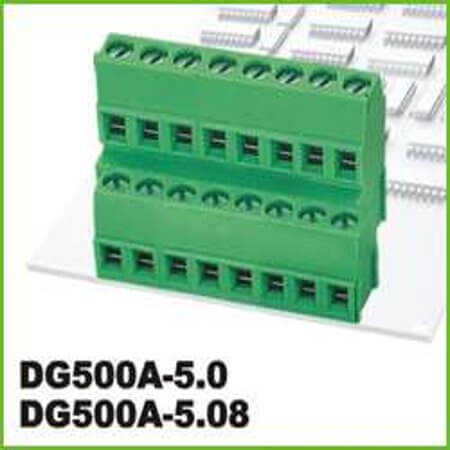

DG500A-5.0-06P-14-1000AH TERM.BLK.5.00MM 6PIN(2X3) PCB TYPE GREEN

DG500A-5.0-06P-14-1000AH TERM.BLK.5.00MM 6PIN(2X3) PCB TYPE GREEN Description

DG500A-5.0-06P-14-1000AH TERM.BLK.5.00MM 6PIN(2X3) PCB TYPE GREEN DG500A-5.0-06P-14-1000AH is a reliable and efficient PCB terminal that supports an operating temperature range of -40°C~+105°C. Designed for wire gauges 24-12 AWG (2.5 mm²). Constructed using PA66+UL94V-0 housing, Brass+Ni Plated clamps, and Brass+Tin Plated pins for durability. Manufactured by DEGSON with compliance to ROHS standards. Packaged in BULK packaging for secure handling.

DG500A-5.0-06P-14-1000AH TERM.BLK.5.00MM 6PIN(2X3) PCB TYPE GREEN Technical Specifications

• Manufacturer: DEGSON
• Series: DG500A
• Gender: None
• WireTermination: Screw
• NumberofPins: 6 Pins
• NumberOfLevel: 2
• PositionsOfLevel: 3
• Pitch: 5.00mm
• MountingType: THT
• WireEntry: 180°
• ProfileHeight: 25.20mm
• Current: 10.0A
• Voltage: 300V
• OperatingTemperature: -40°C~+105°C
• WireGauge(AWG): 24-12 AWG
• WireGauge(mm²): 2.5 mm²
• HousingMaterial: PA66+UL94V-0
• ClampMaterial: Brass+Ni Plated
• PinMaterial: Brass+Tin Plated
• Color: Green
• Side: None
• Rohs: ROHS
• BULK: BULK

---

You can click for product datasheet.
