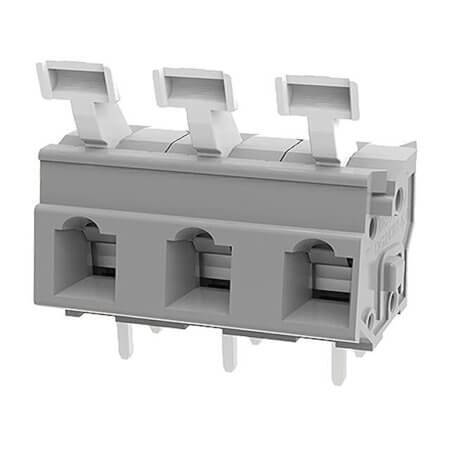

DG242R-7.5-03P-11-00AH TERM.BLK.7.50MM 3P PCB SPRING TYPE

DG242R-7.5-03P-11-00AH TERM.BLK.7.50MM 3P PCB SPRING TYPE Description

DG242R-7.5-03P-11-00AH TERM.BLK.7.50MM 3P PCB SPRING TYPE DG242R-7.5-03P-11-00AH is a reliable and efficient PCB terminal that supports an operating temperature range of -40°C~+105°C. Designed for wire gauges 12-28 AWG (2.0-2.5 mm²). Constructed using PA66+UL94V-0 housing, N/A clamps, and Copper Alloy+Sn Plated pins for durability. Manufactured by DEGSON with compliance to ROHS standards. Packaged in BULK packaging for secure handling.

DG242R-7.5-03P-11-00AH TERM.BLK.7.50MM 3P PCB SPRING TYPE Technical Specifications

• Manufacturer: DEGSON
• Series: DG242R
• Gender: Male
• WireTermination: Screwless
• NumberofPins: 3 Pins
• NumberOfLevel: 1
• PositionsOfLevel: 3
• Pitch: 7.50mm
• MountingType: THT R/A
• WireEntry: 180°
• ProfileHeight: 19.94mm
• Current: 17.0A
• Voltage: 750V
• OperatingTemperature: -40°C~+105°C
• WireGauge(AWG): 12-28 AWG
• WireGauge(mm²): 2.0-2.5 mm²
• HousingMaterial: PA66+UL94V-0
• ClampMaterial: N/A
• PinMaterial: Copper Alloy+Sn Plated
• Color: Gray
• Side: None
• Rohs: ROHS
• BULK: BULK

---

You can click for product datasheet.
