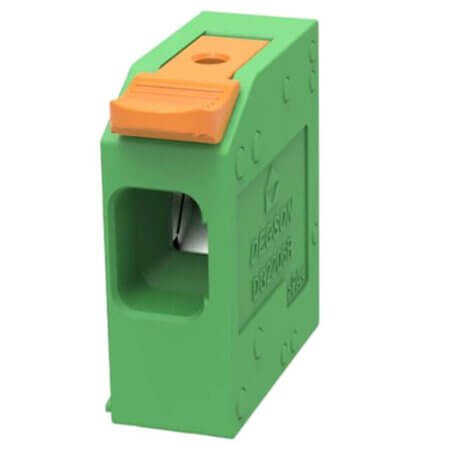

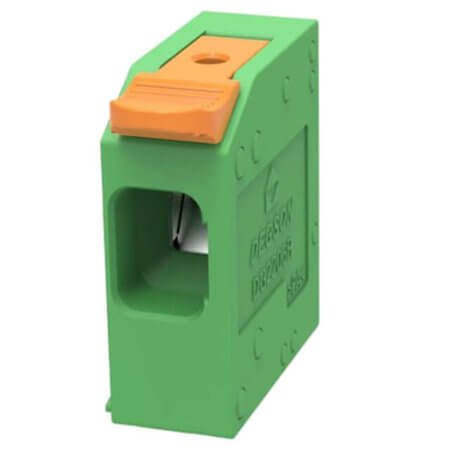

DG2206R-7.5-01P-14-00AH TERM.BLK.13MM 1P PCB SPRING TYPE TRANSPARENT

DG2206R-7.5-01P-14-00AH TERM.BLK.13MM 1P PCB SPRING TYPE TRANSPARENT Description

DG2206R-7.5-01P-14-00AH TERM.BLK.13MM 1P PCB SPRING TYPE TRANSPARENT DG2206R-7.5-01P-14-00AH is a reliable and efficient PCB terminal that supports an operating temperature range of -40°C~+105°C. Designed for wire gauges 24-8 AWG (0.2-6.0 mm²). Constructed using N/A housing, N/A clamps, and N/A pins for durability. Manufactured by DEGSON with compliance to ROHS standards. Packaged in BULK packaging for secure handling.

DG2206R-7.5-01P-14-00AH TERM.BLK.13MM 1P PCB SPRING TYPE TRANSPARENT Technical Specifications

• Manufacturer: DEGSON
• Series: DG2206R
• Gender: None
• WireTermination: Screwless
• NumberofPins: 1 Pin
• NumberOfLevel: 1
• PositionsOfLevel: 1
• Pitch: None
• MountingType: THT
• WireEntry: 180°
• ProfileHeight: None
• Current: 41.0A
• Voltage: 800V
• OperatingTemperature: -40°C~+105°C
• WireGauge(AWG): 24-8 AWG
• WireGauge(mm²): 0.2-6.0 mm²
• HousingMaterial: N/A
• ClampMaterial: N/A
• PinMaterial: N/A
• Color: Green
• Side: None
• Rohs: ROHS
• BULK: BULK

---

You can click for product datasheet.
