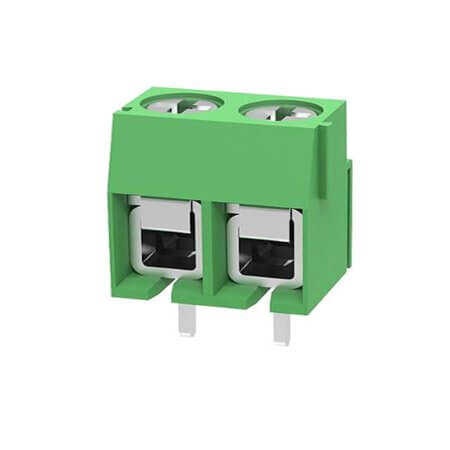

DG126-5.0-02P-14-3020AH TERM.BLK.5.00MM 2P PCB TYPE 0 BOY WITH SIDE LEG

DG126-5.0-02P-14-3020AH TERM.BLK.5.00MM 2P PCB TYPE 0 BOY WITH SIDE LEG Description

DG126-5.0-02P-14-3020AH TERM.BLK.5.00MM 2P PCB TYPE 0 BOY WITH SIDE LEG DG126-5.0-02P-14-3020AH is a reliable and efficient PCB terminal that supports an operating temperature range of -40°C~+105°C. Designed for wire gauges 26-14 AWG (0.5-2.5 mm²). Constructed using PA66+UL94V-0 housing, Stainless Steel clamps, and Brass+Tin Plated pins for durability. Manufactured by DEGSON with compliance to ROHS standards. Packaged in BULK packaging for secure handling.

DG126-5.0-02P-14-3020AH TERM.BLK.5.00MM 2P PCB TYPE 0 BOY WITH SIDE LEG Technical Specifications

• Manufacturer: DEGSON
• Series: DG126
• Gender: None
• WireTermination: Screw
• NumberofPins: 2 Pins
• NumberOfLevel: 1
• PositionsOfLevel: 2
• Pitch: 5.00mm
• MountingType: THT V/T
• WireEntry: 180°
• ProfileHeight: 10.90mm
• Current: 10.0A
• Voltage: 300V
• OperatingTemperature: -40°C~+105°C
• WireGauge(AWG): 26-14 AWG
• WireGauge(mm²): 0.5-2.5 mm²
• HousingMaterial: PA66+UL94V-0
• ClampMaterial: Stainless Steel
• PinMaterial: Brass+Tin Plated
• Color: Green
• Side: None
• Rohs: ROHS
• BULK: BULK

---

You can click for product datasheet.
