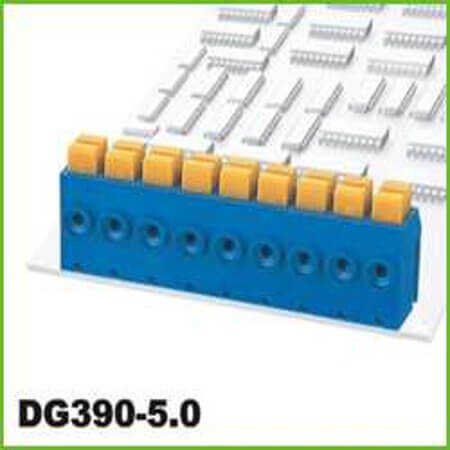

DG390-5.0-02P-12-00AH TERM.BLK.5.00MM 2P PCB TYPE BLUE

DG390-5.0-02P-12-00AH TERM.BLK.5.00MM 2P PCB TYPE BLUE Description

DG390-5.0-02P-12-00AH TERM.BLK.5.00MM 2P PCB TYPE BLUE DG390-5.0-02P-12-00AH is a reliable and efficient PCB terminal that supports an operating temperature range of -40°C~+105°C. Designed for wire gauges 22-18 AWG (1.0 mm²). Constructed using PBT+UL94V-0 housing, Stainless Steel clamps, and Brass+Tin Plated pins for durability. Manufactured by DEGSON with compliance to ROHS standards. Packaged in BULK packaging for secure handling.

DG390-5.0-02P-12-00AH TERM.BLK.5.00MM 2P PCB TYPE BLUE Technical Specifications

• Manufacturer: DEGSON
• Series: DG390
• Gender: None
• WireTermination: Screwless
• NumberofPins: 2 Pins
• NumberOfLevel: 1
• PositionsOfLevel: 2
• Pitch: 5.00mm
• MountingType: THT
• WireEntry: 180°
• ProfileHeight: 15.00mm
• Current: 8.0A
• Voltage: 300V
• OperatingTemperature: -40°C~+105°C
• WireGauge(AWG): 22-18 AWG
• WireGauge(mm²): 1.0 mm²
• HousingMaterial: PBT+UL94V-0
• ClampMaterial: Stainless Steel
• PinMaterial: Brass+Tin Plated
• Color: Blue
• Side: None
• Rohs: ROHS
• BULK: BULK

---

You can click for product datasheet.
