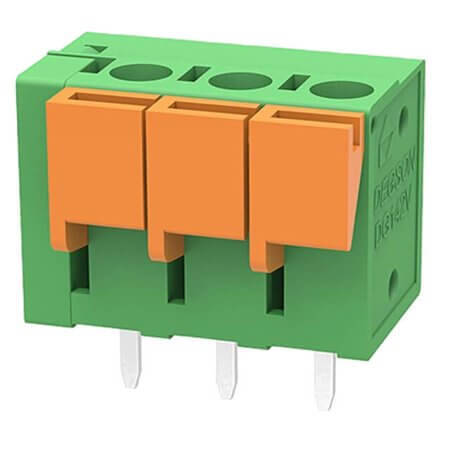

DG142V-7.62-03P-14-00AH TERM.BLK.7.62MM 3P PCB SPRING TYPE GREEN

DG142V-7.62-03P-14-00AH TERM.BLK.7.62MM 3P PCB SPRING TYPE GREEN Description

DG142V-7.62-03P-14-00AH TERM.BLK.7.62MM 3P PCB SPRING TYPE GREEN DG142V-7.62-03P-14-00AH is a reliable and efficient PCB terminal that supports an operating temperature range of -40°C~+105°C. Designed for wire gauges 22-16 AWG (0.2-1.5 mm²). Constructed using PA66+UL94V-0 housing, Stainless Steel clamps, and Copper Alloy+Sn Plated pins for durability. Manufactured by DEGSON with compliance to ROHS standards. Packaged in BULK packaging for secure handling.

DG142V-7.62-03P-14-00AH TERM.BLK.7.62MM 3P PCB SPRING TYPE GREEN Technical Specifications

• Manufacturer: DEGSON
• Series: DG142V
• Gender: None
• WireTermination: Screwless
• NumberofPins: 3 Pins
• NumberOfLevel: 1
• PositionsOfLevel: 3
• Pitch: 7.62mm
• MountingType: THT V/T
• WireEntry: 90°
• ProfileHeight: 14.10mm
• Current: 10.0A
• Voltage: 300V
• OperatingTemperature: -40°C~+105°C
• WireGauge(AWG): 22-16 AWG
• WireGauge(mm²): 0.2-1.5 mm²
• HousingMaterial: PA66+UL94V-0
• ClampMaterial: Stainless Steel
• PinMaterial: Copper Alloy+Sn Plated
• Color: Green
• Side: None
• Rohs: ROHS
• BULK: BULK

---

You can click for product datasheet.
