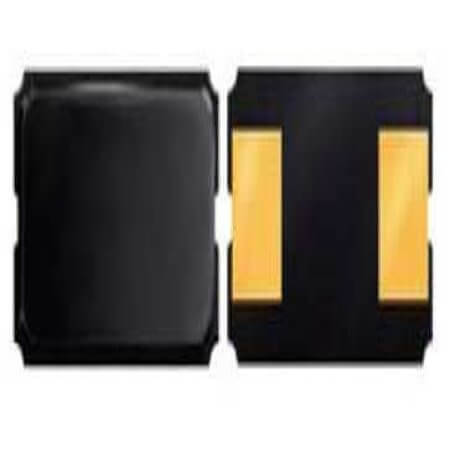

ASG5T-13.56M-FC180C3 CRYSTAL 13.56MHZ 18PF 5x3.2 SMD-2 GLASS XTAL

ASG5T-13.56M-FC180C3 CRYSTAL 13.56MHZ 18PF 5x3.2 SMD-2 GLASS XTAL Description

ASG5T-13.56M-FC180C3 CRYSTAL 13.56MHZ 18PF 5x3.2 SMD-2 GLASS XTAL ASG5T-13.56M-FC180C3 is a high-performance crystal component that operates at a frequency of 13.56MHz with a frequency stability of ±30PPM.Features equivalent series resistance (ESR) of 40 Ohms. Compact dimensions: length 5.00mm, width 3.20mm, and height 1.40mm. Supports a temperature range of -20°C~+70°C for reliable performance. Manufactured by ANSEN with compliance to ROHS standards. Packaged as TAPE&REEL for convenience.

ASG5T-13.56M-FC180C3 CRYSTAL 13.56MHZ 18PF 5x3.2 SMD-2 GLASS XTAL Technical Specifications

• Manufacturer: ANSEN
• MountingType: SMT
• Series: ASG5T
• Package/Case: 2-SMD
• Frequency: 13.56MHz
• Capacitance: 18pF
• FrequencyTolerance: ±30PPM
• FrequencyStability: ±30PPM
• EquivalentSeriesResistance(ESR): 40 Ohms
• Applications:
• Diameter:
• Length: 5.00mm
• Width: 3.20mm
• Height: 1.40mm
• OperatingTemperature: -20°C~+70°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
