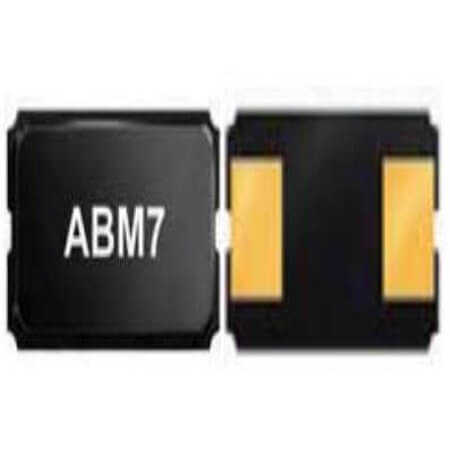

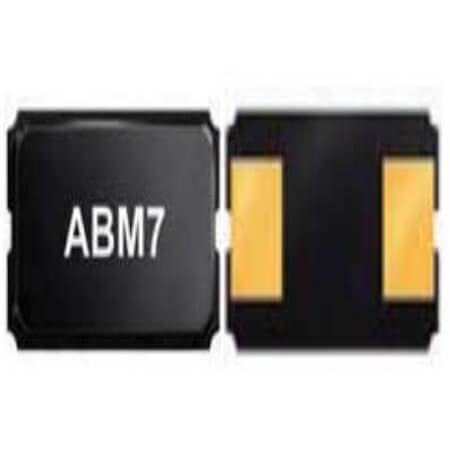

ABM7-8.000MHZ-8-R80-D2Y CRYSTAL 8MHZ 18PF SMD ABRACON

ABM7-8.000MHZ-8-R80-D2Y CRYSTAL 8MHZ 18PF SMD ABRACON Description

ABM7-8.000MHZ-8-R80-D2Y CRYSTAL 8MHZ 18PF SMD ABRACON ABM7-8.000MHZ-8-R80-D2Y is a high-performance crystal component that operates at a frequency of 8MHz with a frequency stability of ±30PPM.Features equivalent series resistance (ESR) of 80 Ohms. Compact dimensions: length 6.00mm, width 3.50mm, and height 1.40mm. Supports a temperature range of -40°C~+85°C for reliable performance. Manufactured by ABRACON with compliance to ROHS standards. Packaged as TAPE&REEL for convenience.

ABM7-8.000MHZ-8-R80-D2Y CRYSTAL 8MHZ 18PF SMD ABRACON Technical Specifications

• Manufacturer: ABRACON
• MountingType: SMT
• Series: ABM7
• Package/Case: 2-SMD
• Frequency: 8MHz
• Capacitance: 8pF
• FrequencyTolerance: ±20PPM
• FrequencyStability: ±30PPM
• EquivalentSeriesResistance(ESR): 80 Ohms
• Applications:
• Diameter:
• Length: 6.00mm
• Width: 3.50mm
• Height: 1.40mm
• OperatingTemperature: -40°C~+85°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
