TX7-503C-SQ-ST3 CRYSTAL 20MHZ SMD TX7-503C-SQ-ST3

TX7-503C-SQ-ST3 CRYSTAL 20MHZ SMD TX7-503C-SQ-ST3 Description

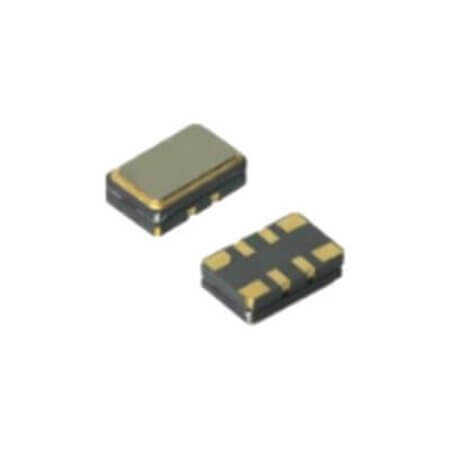

TX7-503C-SQ-ST3 CRYSTAL 20MHZ SMD TX7-503C-SQ-ST3 The product TX7-503C-SQ-ST3 (CRYSTAL 20MHZ SMD TX7-503C-SQ-ST3) is a high-precision crystal oscillator designed for reliable frequency control. Manufactured by QUARTZCOM, it offers a frequency stability of ±4.60PPM and operates at a supply voltage of 3.3V ~ 5V. The output type is CMOS, making it versatile for various N/A applications. The compact design measures 5.00mm x 3.20mm x 1.50mm and performs reliably within a temperature range of -40°C~+85°C. Packaged in TAPE&REEL format and compliant with ROHS standards, it is an ideal choice for modern electronic systems.

TX7-503C-SQ-ST3 CRYSTAL 20MHZ SMD TX7-503C-SQ-ST3 Technical Specifications

• Manufacturer: QUARTZCOM
• MountingType: SMT
• Series: TX7-503C
• Package/Case: 8-SMD
• Frequency: 20MHz
• Capacitance: 15pF
• FrequencyTolerance:
• FrequencyStability: ±4.60PPM
• SupplyVoltage: 3.3V ~ 5V
• Output: CMOS
• Applications:
• Length: 5.00mm
• Width: 3.20mm
• Height: 1.50mm
• OperatingTemperature: -40°C~+85°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
