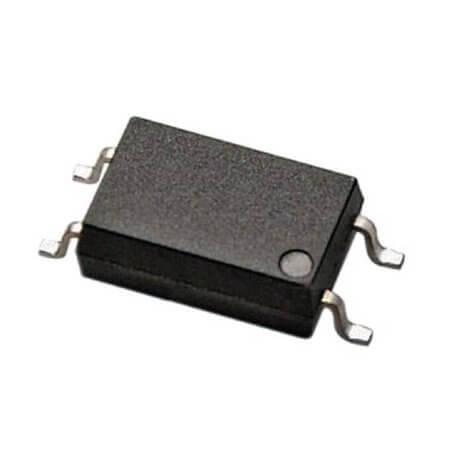

TCLT1007 OPTOISOLATOR 5KV TRANSISTOR SOP4

TCLT1007 OPTOISOLATOR 5KV TRANSISTOR SOP4 Description

The TCLT1007 OPTOISOLATOR 5KV TRANSISTOR SOP4 The TCLT1007 by VISHAY is a cutting-edge phototransistor optocoupler designed for reliable and efficient isolation. With an output voltage of 70V and an output current of 50mA, it ensures excellent performance across various systems. This optocoupler features an isolation voltage of 5000Vrms and a forward voltage of 1.25V, making it suitable for demanding applications. Operating in a temperature range of -55°C~+100°C, the TCLT1007 is built to withstand challenging environments. Compliant with ROHS standards and packaged in a TAPE&REEL format, this optocoupler is the ideal choice for advanced electronic designs.

TCLT1007 OPTOISOLATOR 5KV TRANSISTOR SOP4 Technical Specifications

• Features: Optocoupler, Phototransistor Output, SOP-4L, Long Mini-Flat Package
• Manufacturer: VISHAY
• MountingType: SMT
• Package   /Case: SOP4
• Number   ofChannel: 1
• Current   TransferRatio: %80 - %160
• OutputVoltage: 70V
• OutputCurrent: 50mA
• IsolationVoltage: 5000Vrms
• ForwardVoltage: 1.25V
• OperatingTemperature: -55°C~+100°C
• Rohs: ROHS
• Packaging: TAPE&REEL
