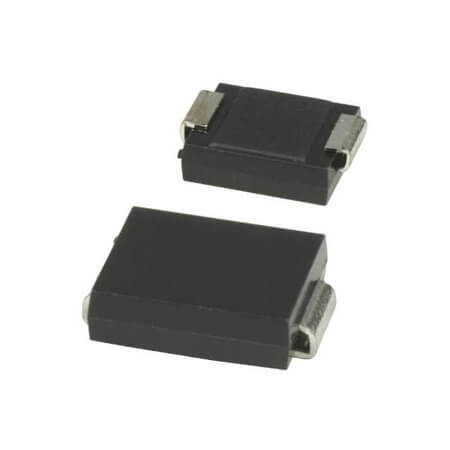

SZ1.5SMC39AT3G DIODE TVS 1500W 53.9V DO214AB (SMC) SMT

SZ1.5SMC39AT3G DIODE TVS 1500W 53.9V DO214AB (SMC) SMT Description

The SZ1.5SMC39AT3G DIODE TVS 1500W 53.9V DO214AB (SMC) SMT The SZ1.5SMC39AT3G by LITTELFUSE is a state-of-the-art TVS diode designed to protect electronic circuits from voltage transients. With a reverse current of 5uA, it ensures minimal leakage while maintaining optimal performance. Featuring a peak pulse current of 28A and a power peak pulse of 1.5kW, this diode is ideal for Automotive(AEC-Q101) applications. Operating efficiently within a temperature range of -65°C~+150°C, the SZ1.5SMC39AT3G is built to endure demanding environments. Compliant with ROHS standards and packaged in a TAPE&REEL format, this diode offers exceptional reliability and protection for sensitive electronic systems.

SZ1.5SMC39AT3G DIODE TVS 1500W 53.9V DO214AB (SMC) SMT Technical Specifications

• Manufacturer: LITTELFUSE
• TVS  DiodeType: Standard
• DiodeConfiguration: Single
• MountingType: SMT
• Package  /Case: DO214AB (SMC)
• Direction: Uni-Direction
• Voltage  -  Reverse  Standoff(Typ): 33.3V
• ReverseCurrent: 5uA
• Peak  Pulse  Current  (Max)(Ippm): 28A
• Power  (PeakPulse): 1.5kW
• Applications: Automotive(AEC-Q101)
• OperatingTemperature: -65°C~+150°C
• Rohs: ROHS
• Packaging: TAPE&REEL
