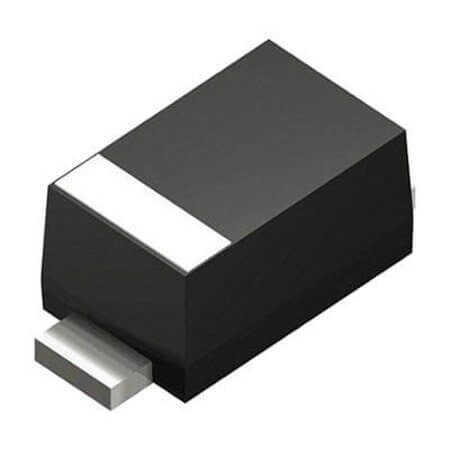

PTVS33VS1UR,115 DIODE TVS 400W 33V SOD123W

PTVS33VS1UR,115 DIODE TVS 400W 33V SOD123W Description

The PTVS33VS1UR,115 DIODE TVS 400W 33V SOD123W The PTVS33VS1UR,115 by NXP is a state-of-the-art TVS diode designed to protect electronic circuits from voltage transients. With a reverse current of 100nA, it ensures minimal leakage while maintaining optimal performance. Featuring a peak pulse current of 7.5A and a power peak pulse of 400W, this diode is ideal for Automotive(AEC-Q101) applications. Operating efficiently within a temperature range of -55°C~+150°C, the PTVS33VS1UR,115 is built to endure demanding environments. Compliant with ROHS standards and packaged in a TAPE&REEL format, this diode offers exceptional reliability and protection for sensitive electronic systems.

PTVS33VS1UR,115 DIODE TVS 400W 33V SOD123W Technical Specifications

• Manufacturer: NXP
• TVS   DiodeType:
• DiodeConfiguration: Single
• MountingType: SMT
• Package   /Case: SOD123W
• Direction: Uni-Direction
• Voltage   -   Reverse   Standoff(Typ): 33V
• ReverseCurrent: 100nA
• Peak   Pulse   Current   (Max)(Ippm): 7.5A
• Power   (PeakPulse): 400W
• Applications: Automotive(AEC-Q101)
• OperatingTemperature: -55°C~+150°C
• Rohs: ROHS
• Packaging: TAPE&REEL
