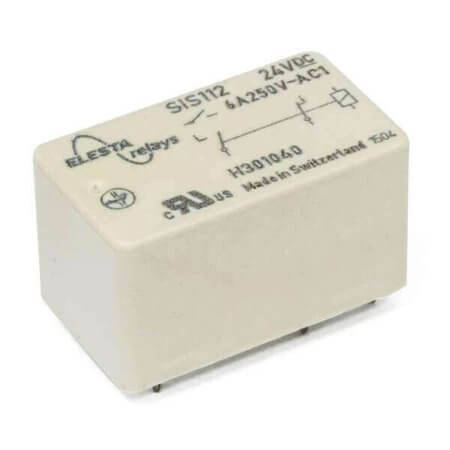

SIS112 12VDC RELAY FORCEGUIDED 6A 12VDC (1 Form A/1 Form B)

SIS112 12VDC RELAY FORCEGUIDED 6A 12VDC (1 Form A/1 Form B) Description

SIS112 12VDC RELAY FORCEGUIDED 6A 12VDC (1 Form A/1 Form B) SIS112 12VDC is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 250VAC/DC and coil resistance of 520 Ohms. Features a coil power of 270mW and operates within a temperature range of -40°C~+85°C.Compact design with dimensions: length 29.00mm, width 16.60mm, and height 16.50mm.Manufactured by ELESTA and compliant with ROHS standards. Packaged as BOX for convenience.

SIS112 12VDC RELAY FORCEGUIDED 6A 12VDC (1 Form A/1 Form B) Technical Specifications

• Manufacturer: ELESTA
• RelayType: Relay Forcibly Guided
• Series: SIS2
• MountingType: THT
• ContactForm: DPST-NO/NC (1 Form A/1 Form B)
• CoilType: Non Latching
• ContactCurrent(Nom): 6A
• ContactCurrent(Max):
• CoilVoltage: 12VDC
• CoilCurrent: 23mA
• ContactVoltage: 250VAC/DC
• CoilResistance: 520 Ohms
• CoilPower: 270mW
• OperatingTemperature: -40°C~+85°C
• NumberofPins: 6 Pin
• Length: 29.00mm
• Width: 16.60mm
• Height: 16.50mm
• Rohs: ROHS
• Packaging: BOX

---

You can click for product datasheet.
