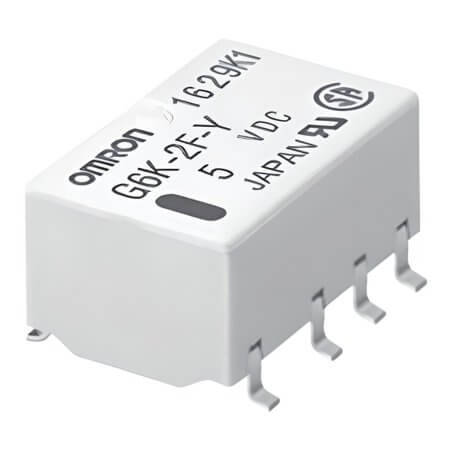

G6K-2F-Y-TR DC12 RELAY 1A 12V TELECOM DPDT SMD

G6K-2F-Y-TR DC12 RELAY 1A 12V TELECOM DPDT SMD Description

G6K-2F-Y-TR DC12 RELAY 1A 12V TELECOM DPDT SMD G6K-2F-Y-TR DC12 is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 125VAC/60VDC - Max and coil resistance of 1.31K Ohms. Features a coil power of 100mW and operates within a temperature range of -40°C~+70°C.Compact design with dimensions: length 10.00mm, width 6.50mm, and height 5.20mm.Manufactured by OMRON and compliant with ROHS standards. Packaged as TAPE&REEL for convenience.

G6K-2F-Y-TR DC12 RELAY 1A 12V TELECOM DPDT SMD Technical Specifications

• Manufacturer: OMRON
• RelayType: Relay Telecom
• Series: G6K
• MountingType: SMT
• ContactForm: DPDT (2 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 1A
• ContactCurrent(Max):
• CoilVoltage: 12VDC
• CoilCurrent: 9.10mA
• ContactVoltage: 125VAC/60VDC - Max
• CoilResistance: 1.31K Ohms
• CoilPower: 100mW
• OperatingTemperature: -40°C~+70°C
• NumberofPins: 8 Pin
• Length: 10.00mm
• Width: 6.50mm
• Height: 5.20mm
• Rohs: ROHS
• Packaging: TAPE&REEL

---
