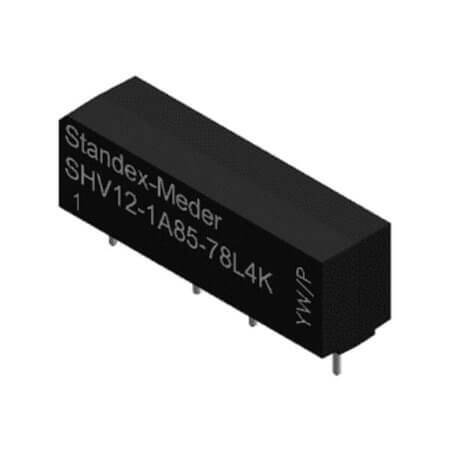

SHV12-1A85-78L4K RELAY REED 1A 12V SPST-NO (1 Form A)

SHV12-1A85-78L4K RELAY REED 1A 12V SPST-NO (1 Form A) Description

SHV12-1A85-78L4K RELAY REED 1A 12V SPST-NO (1 Form A) SHV12-1A85-78L4K is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 1000VAC/1000VDC and coil resistance of 500 Ohms. Features a coil power of nan and operates within a temperature range of -40°C~+100°C.Compact design with dimensions: length 24.13mm, width 6.22mm, and height 8.13mm.Manufactured by STANDEX and compliant with ROHS standards. Packaged as TUBE for convenience.

SHV12-1A85-78L4K RELAY REED 1A 12V SPST-NO (1 Form A) Technical Specifications

• Manufacturer: STANDEX
• RelayType: Relay Reed
• Series: SHV
• MountingType: THT
• ContactForm: SPST-NO (1 Form A)
• CoilType: Non Latching
• ContactCurrent(Nom): 1A
• ContactCurrent(Max):
• CoilVoltage: 12VDC
• CoilCurrent: 24mA
• ContactVoltage: 1000VAC/1000VDC
• CoilResistance: 500 Ohms
• CoilPower:
• OperatingTemperature: -40°C~+100°C
• NumberofPins: 4 Pin
• Length: 24.13mm
• Width: 6.22mm
• Height: 8.13mm
• Rohs: ROHS
• Packaging: TUBE

---

You can click for product datasheet.
