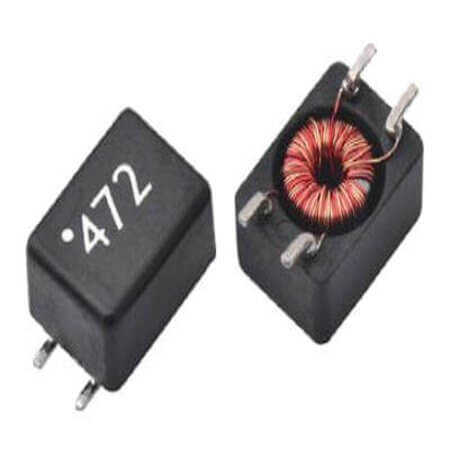

SHT0905-472 CHOKE COMMON MODE 4.7mH 400mA SMD

SHT0905-472 CHOKE COMMON MODE 4.7mH 400mA SMD Description

SHT0905-472 CHOKE COMMON MODE 4.7mH 400mA SMD The product SHT0905-472 (CHOKE COMMON MODE 4.7mH 400mA SMD) is a high-quality common mode choke designed for efficient noise suppression. Manufactured by CORE MASTER, it features an inductance of 4.7mH and a DC resistance of 900m Ohms. Built for General Purpose, it is suitable for various applications. The compact design measures 9.20mm x 6.00mm x 5.00mm and operates within a temperature range of N/A. Packaged in TAPE&REEL format, this choke complies with ROHS standards, making it a reliable choice for modern systems.

SHT0905-472 CHOKE COMMON MODE 4.7mH 400mA SMD Technical Specifications

• Manufacturer: CORE MASTER
• Series: SHT
• MountingType: SMT
• Package/Case: Non Standard
• Pitch: None
• Technology: Wire Wound
• Shielding: Shielded
• FilterType: Signal Line Filter
• NumberofLines: 2
• Inductance: 4.7mH
• Impedance: None
• Current: 400mA
• Tolerance: ±30%
• DCResistance(DCR): 900m Ohms
• Applications: General Purpose
• Diameter:
• Length: 9.20mm
• Width: 6.00mm
• Height: 5.00mm
• OperationTemperature:
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
