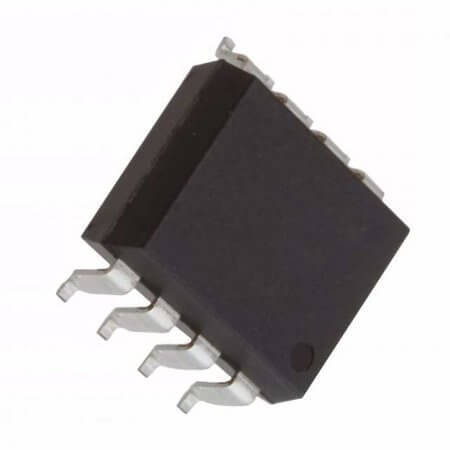

HCPL-4504-500E IC-4504 OPTO DRIVER DIP8 GULL WING

HCPL-4504-500E IC-4504 OPTO DRIVER DIP8 GULL WING Description

The HCPL-4504-500E IC-4504 OPTO DRIVER DIP8 GULL WING The HCPL-4504-500E by AVAGO-BROADCOM is a cutting-edge phototransistor optocoupler designed for reliable and efficient isolation. With an output voltage of 20V and an output current of 8mA, it ensures excellent performance across various systems. This optocoupler features an isolation voltage of 3750Vrms and a forward voltage of 1.5V, making it suitable for demanding applications. Operating in a temperature range of -55°C~+100°C, the HCPL-4504-500E is built to withstand challenging environments. Compliant with ROHS standards and packaged in a TAPE&REEL format, this optocoupler is the ideal choice for advanced electronic designs.

HCPL-4504-500E IC-4504 OPTO DRIVER DIP8 GULL WING Technical Specifications

• Features: High CMR, High Speed Optocouplers
• Manufacturer: AVAGO-BROADCOM
• MountingType: SMT
• Package  /Case: SMD8
• Number  ofChannel: 1
• Current  TransferRatio: %25 - %60
• OutputVoltage: 20V
• OutputCurrent: 8mA
• IsolationVoltage: 3750Vrms
• ForwardVoltage: 1.5V
• OperatingTemperature: -55°C~+100°C
• Rohs: ROHS
• Packaging: TAPE&REEL
