RN214-4-02-1M5 CHOKE COMMON MODE 300V 1.5mH

RN214-4-02-1M5 CHOKE COMMON MODE 300V 1.5mH Description

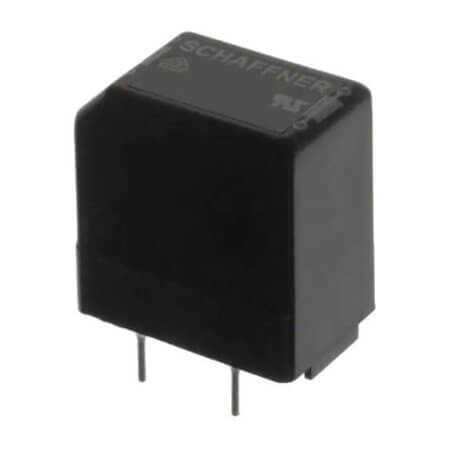

RN214-4-02-1M5 CHOKE COMMON MODE 300V 1.5mH The product RN214-4-02-1M5 (CHOKE COMMON MODE 300V 1.5mH) is a high-quality common mode choke designed for efficient noise suppression. Manufactured by SCHAFFNER, it features an inductance of 1.5mH and a DC resistance of 34m Ohms. Built for General Purpose, it is suitable for various applications. The compact design measures 23.00mm x 15.50mm x 25.30mm and operates within a temperature range of -40°C ~ +100°C. Packaged in TUBE format, this choke complies with ROHS standards, making it a reliable choice for modern systems.

RN214-4-02-1M5 CHOKE COMMON MODE 300V 1.5mH Technical Specifications

• Manufacturer: SCHAFFNER
• Series: RN214
• MountingType: THT
• Package/Case: Non Standard
• Pitch:
• Technology: Wire Wound
• Shielding: Unshielded
• FilterType: Power Line Filter
• NumberofLines: 2
• Inductance: 1.5mH
• Impedance: None
• Current: 4A
• Tolerance:
• DCResistance(DCR): 34m Ohms
• Applications: General Purpose
• Diameter:
• Length: 23.00mm
• Width: 15.50mm
• Height: 25.30mm
• OperationTemperature: -40°C ~ +100°C
• Rohs: ROHS
• Packaging: TUBE

---

You can click for product datasheet.
