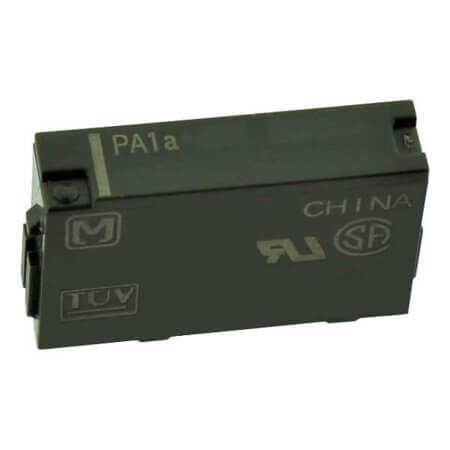

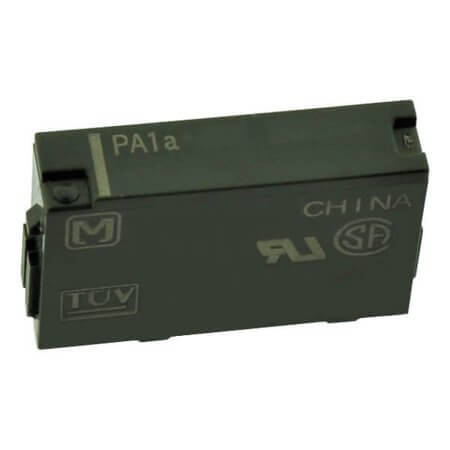

PA1A-24V RELAY 5A 24V (1a) PANASONIC

PA1A-24V RELAY 5A 24V (1a) PANASONIC Description

PA1A-24V RELAY 5A 24V (1a) PANASONIC PA1A-24V is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 250VAC/30VDC and coil resistance of 3.20K Ohms. Features a coil power of 120mW and operates within a temperature range of -40°C~+70°C.Compact design with dimensions: length 20.00mm, width 5.00mm, and height 12.50mm.Manufactured by PANASONIC COMP. and compliant with ROHS standards. Packaged as TUBE for convenience.

PA1A-24V RELAY 5A 24V (1a) PANASONIC Technical Specifications

• Manufacturer: PANASONIC COMP.
• RelayType: Relay Power Slim
• Series: PA
• MountingType: THT
• ContactForm: SPST-NO (1 Form A)
• CoilType: Non Latching
• ContactCurrent(Nom): 5A
• ContactCurrent(Max):
• CoilVoltage: 24VDC
• CoilCurrent: 7.50mA
• ContactVoltage: 250VAC/30VDC
• CoilResistance: 3.20K Ohms
• CoilPower: 120mW
• OperatingTemperature: -40°C~+70°C
• NumberofPins: 4 Pin
• Length: 20.00mm
• Width: 5.00mm
• Height: 12.50mm
• Rohs: ROHS
• Packaging: TUBE

---

You can click for product datasheet.
